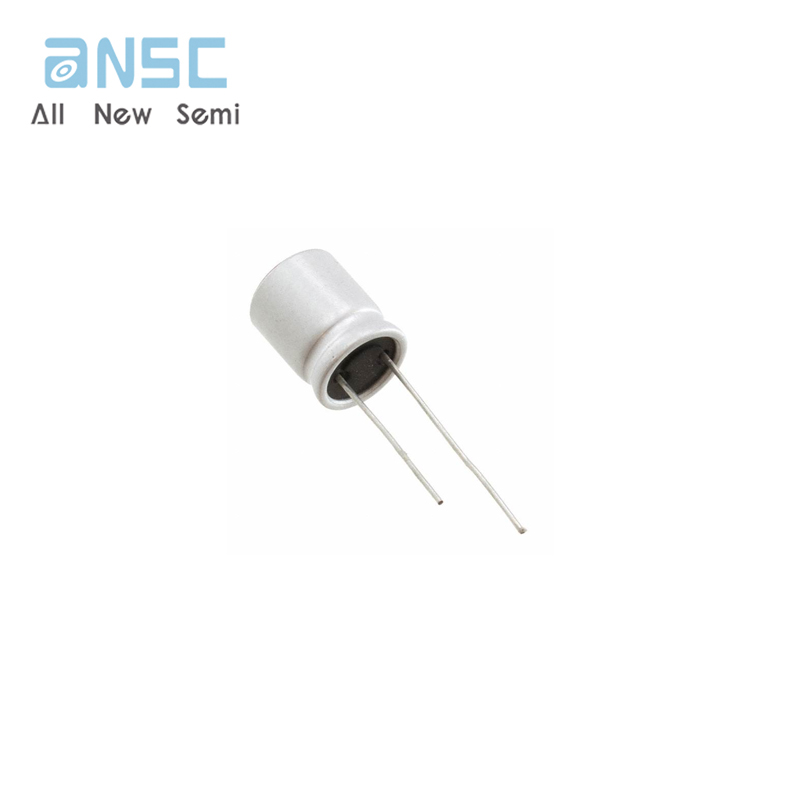

Original RNU1E391MDN1PH Capacitor 390µF 25V Aluminum - Polymer Capacitors Radial, Can 14mOhm 2000 Hrs @ 105°C
Manufacturer
Manufacturer Product Number
RNU1E391MDN1PH
Description
RNU1E391MDN1PH Capacitors CAP ALUM POLY 390UF 20% 25V TH
Package Condition
Cut Tape (CT) Tape & Box (TB)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The Nichicon RNU1E391MDN1PH is a high-quality, general-purpose aluminum-polymer capacitor designed to meet the demands of various electronic applications. With a capacitance of 390 μF and an operating temperature range of -55°C to 105°C, this capacitor offers reliable performance in a wide range of environments. Its compact radial can package with through-hole mounting ensures easy integration into existing circuit designs. Features High Capacitance: 390 μF, ideal for applications requiring significant capacitance. Low ESR: 14 mOhm, minimizing energy losses and ensuring efficient operation. High Ripple Current: Up to 5A at 100 kHz and 500 mA at 120 Hz, suitable for applications with high current demands. Long Lifetime: 2000 hours at 105°C, providing a long-lasting solution for critical applications. ROHS3 Compliant: Meets the latest environmental standards for lead-free components. Through-Hole Mounting: Easy integration into existing PCB designs using through-hole technology. ApplicationsPrimary Applications: Power supplies and voltage regulators Filtering circuits in audio equipment Decoupling capacitors in digital circuits Secondary Applications: Audio equipment (amplifiers, speakers) Medical devices (defibrillators, ECG machines) Industrial control systems |
Product Description
|
Type |
Description |
|---|---|
|
Category |
Capacitors Aluminum - Polymer Capacitors |
|
Manufacturer |
- |
|
Series |
FPCAP, RNU |
|
Packaging |
Cut Tape (CT) Tape & Box (TB) |
|
Part Status |
Active |
|
Type |
Polymer |
|
Capacitance |
390 µF |
|
Tolerance |
±20% |
|
Voltage - Rated |
25 V |
|
ESR (Equivalent Series Resistance) |
14mOhm |
|
Lifetime @ Temp. |
2000 Hrs @ 105°C |
|
Operating Temperature |
-55°C ~ 105°C |
|
Ratings |
- |
|
Applications |
General Purpose |
|
Ripple Current @ Low Frequency |
500 mA @ 120 Hz |
|
Ripple Current @ High Frequency |
5 A @ 100 kHz |
|
Lead Spacing |
0.197" (5.00mm) |
|
Size / Dimension |
0.394" Dia (10.00mm) |
|
Height - Seated (Max) |
0.551" (14.00mm) |
|
Surface Mount Land Size |
- |
|
Mounting Type |
Through Hole |
|
Package / Case |
Radial, Can |
