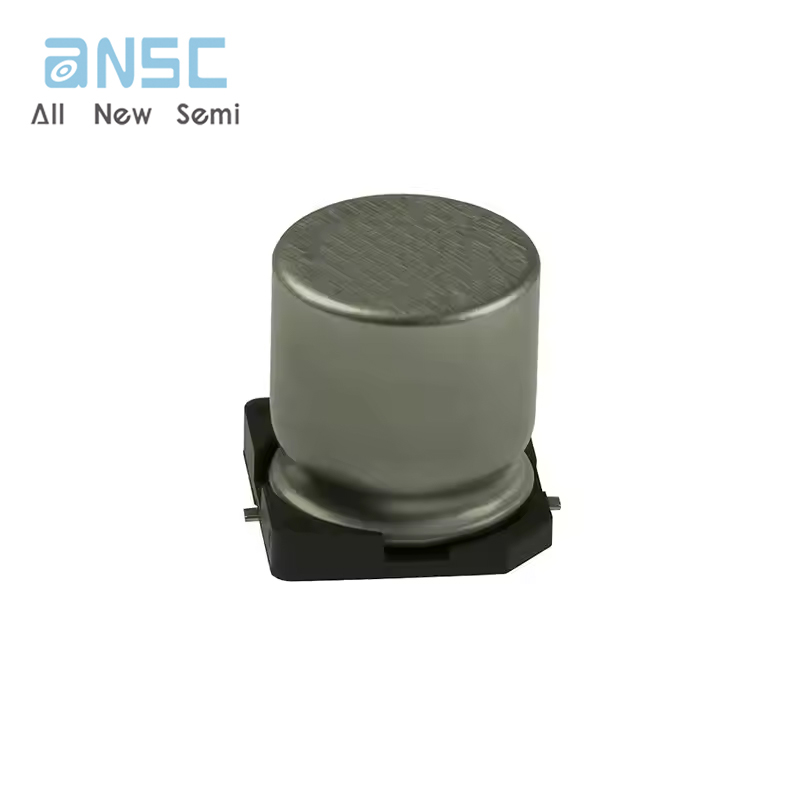

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
One-Stop Supply BOM distribution service electronic components EEVFK1V102M Aluminum electrolytic capacitor
Manufacturer Product Number
EEVFK1V102M
Description
BOM distribution service electronic components EEVFK1V102M Aluminum electrolytic capacitor
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Surface Mount Type
Features
Endurance: 2000 to 5000h at105°C
Low impedance (40 to 60% less than FCseries)
Miniaturization(30 to 50% less than FC series)
Vibration-proof product is available upon request.(∮f8≤)
Product Description
|
PART# |
EEVFK1V102M |
|
Package Description |
Chip |
|
Factory Lead Time |
21 Weeks |
|
Capacitance |
1000 µF |
|
Capacitor Type |
Aluminum Electrolytic Capacitor |
|
Diameter |
16 Mm |
|
Dielectric Material |
Aluminum (Wet) |
|
Height |
16.5 Mm |
|
JESD-609 Code |
e3 |
|
Leakage Current |
0.35 Ma |
|
Length |
17 Mm |
|
Mounting Feature |
Surface Mount |
|
Negative Tolerance |
20% |
|
Number of Terminals |
2 |
|
Operating Temperature-Max |
105 °C |
|
Operating Temperature-Min |
-55 °C |
|
Package Shape |
Cylindrical Package |
|
Package Style |
Smt |
|
Packing Method |
Tr, Embossed, 13 Inch |
|
Polarity |
Polarized |
|
Positive Tolerance |
20% |
|
Rated (DC) Voltage (URdc) |
35 V |
|
Reference Standard |
Aec-Q200 |
|
Ripple Current |
1350 Ma |
|
Size Code |
6767 |
|
Surface Mount |
Yes |
|
Tan Delta |
0.12 |
|
Terminal Finish |
Tin |
|
Terminal Shape |
Flat |
|
Width |
17 Mm |

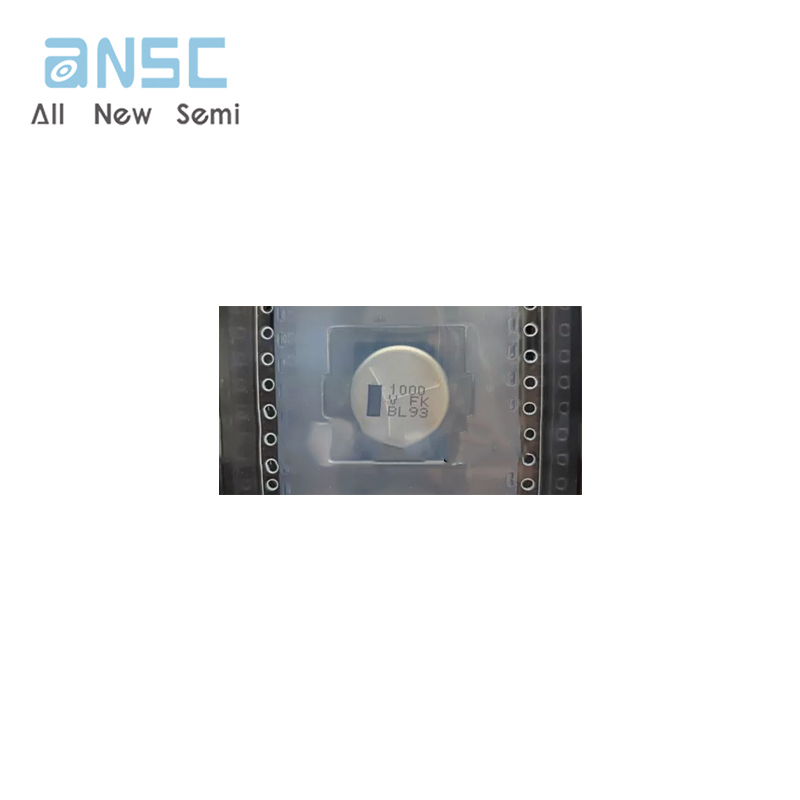

Actual image of the product
