Hot sale Original FH12S-50S-0.5SH(05) 50 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Product Number
FH12S-50S-0.5SH(05)
Description
FH12S-50S-0.5SH(05) 50 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Package Condition
Tape & Reel (TR)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| ■ Features 1. Ease of Use and Space Savings Only one finger or 6.9N (Newtons) of force is required to lock rotational actuator (flip-lock) as compared to using 2 fingers and 39.2N to close a FFC/FPC connector from our competition. The Flip-Lock design also allows customers to place 2 or more connectors side by side as there is no need to waste additional board space for a side latch. 2. Strengthened Flip-lock Actuator The standard Flip-Lock requires only 2.0mm height above the board. A strengthened lock lever is available which only requires an additional 0.4mm. 3. Supports Thin FPC (0.18mm) does not require double-sided FPC to have any additional strengthening plate or stiffener and can therefore support a thickness of as little as 0.18mm +/-0.05. 4. Ensures Reliability patented half tuning fork contacts maintain the required normal force without relying on the connector housing. With our competitor’s conventional products the housing walls support the contact force, which does not provide for long-term reliability. 5. Prevention of Solder Bridge Excess solder cavity absorbs excessive solder and avoids solder bridging. 6. Three different assembly types FH12 is offered in Top & Bottom Contact and Vertical Mount and offered in both a 0.5mm contact pitch as well as a 1.0mm contact pitch (bottom contact only). |
Product Description
| Type | Description |
| ANSC PART# | ANSC - FH12S-50S-0.5SH(05) |
| Category | Connectors, Interconnects |
| FFC, FPC (Flat Flexible) Connectors | |
| FFC, FPC (Flat Flexible) Connector Assemblies | |
| Manufacturer | Original |
| Series | FH12 |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 50 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.094" (2.40mm) |
| Locking Feature | Flip Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA), Nylon |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -40°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 0.5A |
| Contact Finish Thickness | - |
| Housing Color | Beige |
| Actuator Color | Brown |
| Mating Cycles | 20 |

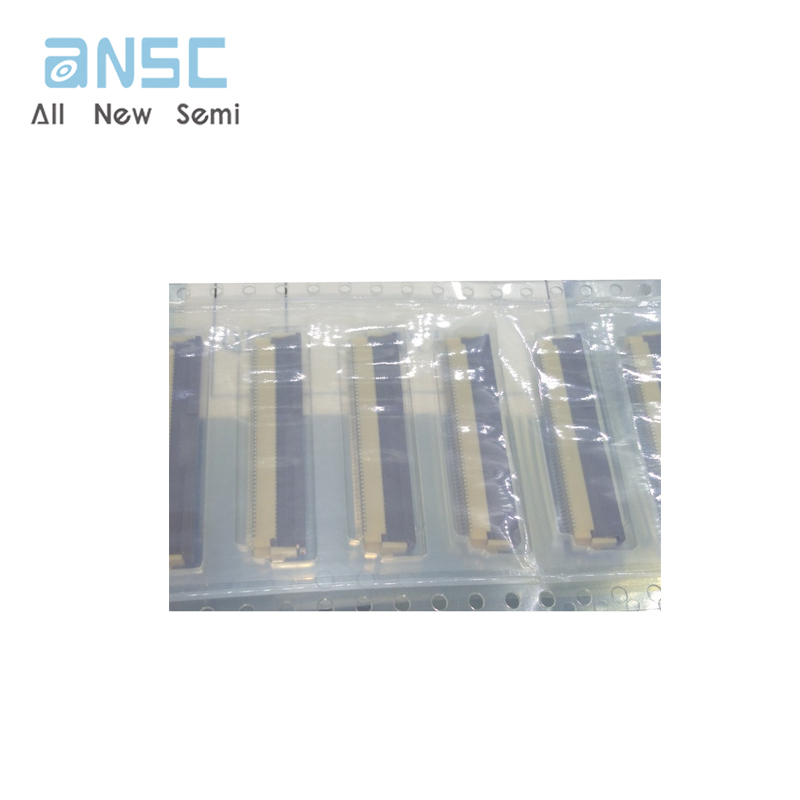

Actual image of the product
