22-05-7058

Description

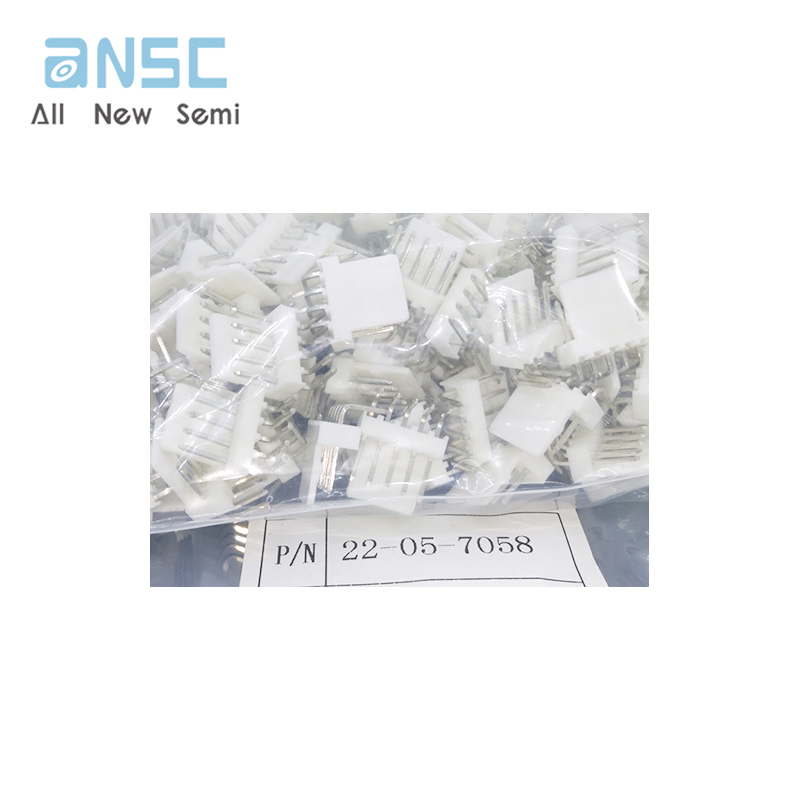

22-05-7058 Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal

Package Condition

Bulk

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Type	Description
ANSC PART#	ANSC -22-05-7058
Ihs Manufacturer	Original
Body Breadth	0.25 inch
Body Depth	0.46 inch
Body Length	0.5 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Finish Mating	NOT SPECIFIED
Contact Finish Termination	Matte Tin (Sn) - reflowed over Nickel (Ni) barrier
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	20 mΩ
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1500VAC V
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	1.946 N
Insulation Resistance	5000000000 Ω
Insulator Color	WHITE
Insulator Material	POLYAMIDE
JESD-609 Code	e3
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	POLARIZED LCK
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	105 °C
Operating Temperature-Min	-40 °C
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Plating Thickness	5u inch
Rated Current (Signal)	2.5 A
Reference Standard	UL, CSA
Terminal Length	0.26 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	5
UL Flammability Code	94V-0
Withdrawl Force-Min	.556 N
