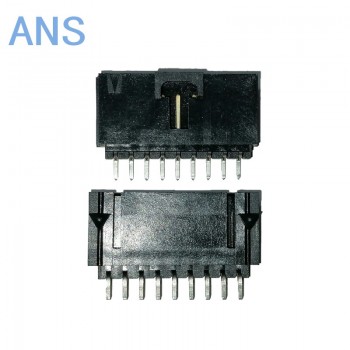

Original sales spot supply 15-91-2095 Connector Header Surface Mount, Right Angle 9 position 0.100" (2.54mm) Low Profile
Manufacturer Product Number
15-91-2095
Description
Connector Header Surface Mount, Right Angle 9 position 0.100" (2.54mm) Low Profile
Package Condition
TUBE
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Connector Header Surface Mount, Right Angle 9 position 0.100" (2.54mm) Low Profile
Specifications
| Attribute | Attribute value |
|---|---|
| ANSM-Part# | ANSM-15-91-2095 |
| Category | Connectors, Interconnects |
| Rectangular Connectors | |
| Headers, Male Pins | |
| Mfr | - |
| Series | SL 70634 |
| Package | Tube |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.215" (5.45mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyester, Glass Filled |
| Features | Board Guide |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Base Product Number | 1591 |
