Hot sale Original 22-01-3057 CONN RCPT HSG 5POS 2.54MM 5 Rectangular Connectors - Housings Receptacle White

Manufacturer Product Number

22-01-3057

Description

22-01-3057 CONN RCPT HSG 5POS 2.54MM 5 Rectangular Connectors - Housings Receptacle White 0.100" (2.54mm)

Package Condition

Bulk

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Type	Description
ANSC PART#	ANSC-22-01-3057
Ihs Manufacturer	/
Samacsys Manufacturer	/
Body Breadth	0.261 inch
Body Depth	0.5 inch
Body Length	0.522 inch
Body/Shell Style	RECEPTACLE
Connector Type	BOARD CONNECTOR
Contact Design	REMOVABLE CNT BLOCK
Contact Finish Mating	NOT SPECIFIED
Contact Finish Termination	NOT APPLICABLE
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	10 mΩ
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	700VAC V
Durability	25 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	7.8 N
Insulation Diameter-Min	0.062 inch
Insulation Resistance	1000000000 Ω
Insulator Color	WHITE
Insulator Material	POLYAMIDE
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number Of Connectors	ONE
Number of Rows Loaded	1
Operating Temperature-Max	105 °C
Operating Temperature-Min	-40 °C
Option	GENERAL PURPOSE
Polarization Key	POLARIZED
Rated Current (Signal)	4 A
Reference Standard	CSA; UL
Termination Type	CRIMP
Total Number of Contacts	5
UL Flammability Code	94V-0
Wire Size-Max	22 AWG
Wire Size-Min	30 AWG
Withdrawl Force-Min	2.3 N

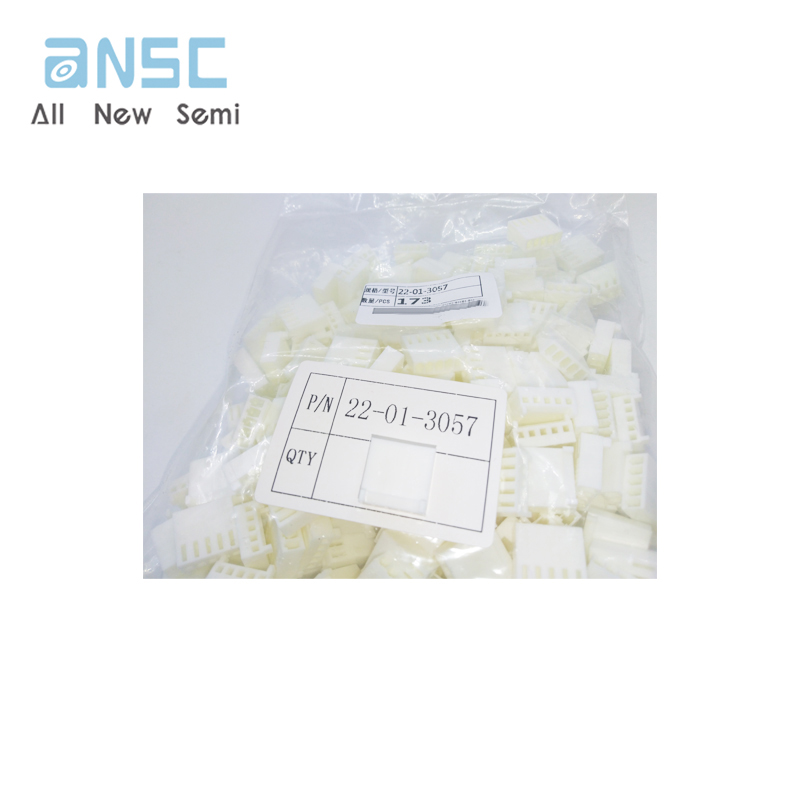

Product Photos

22-01-3057

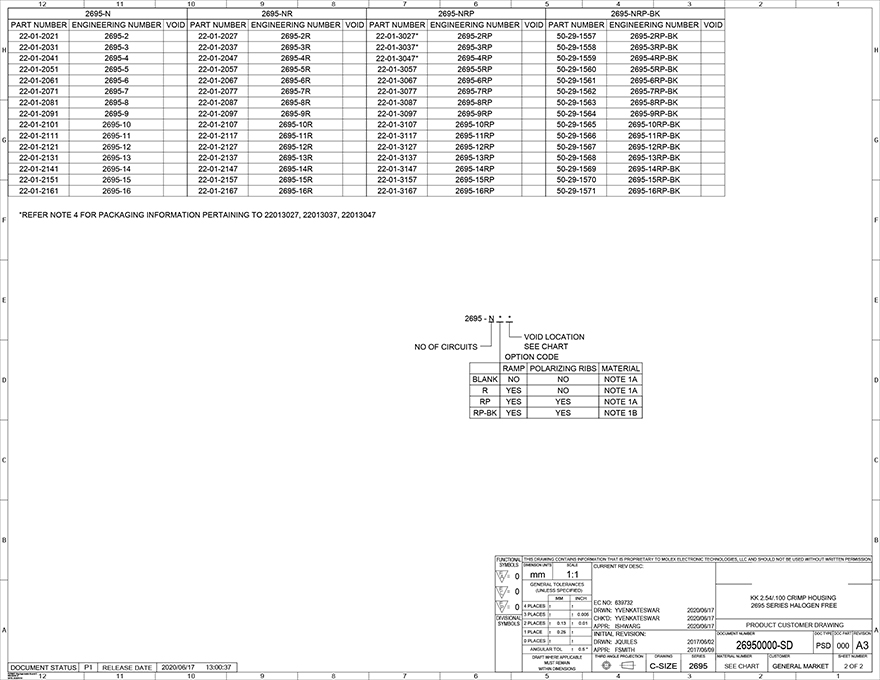

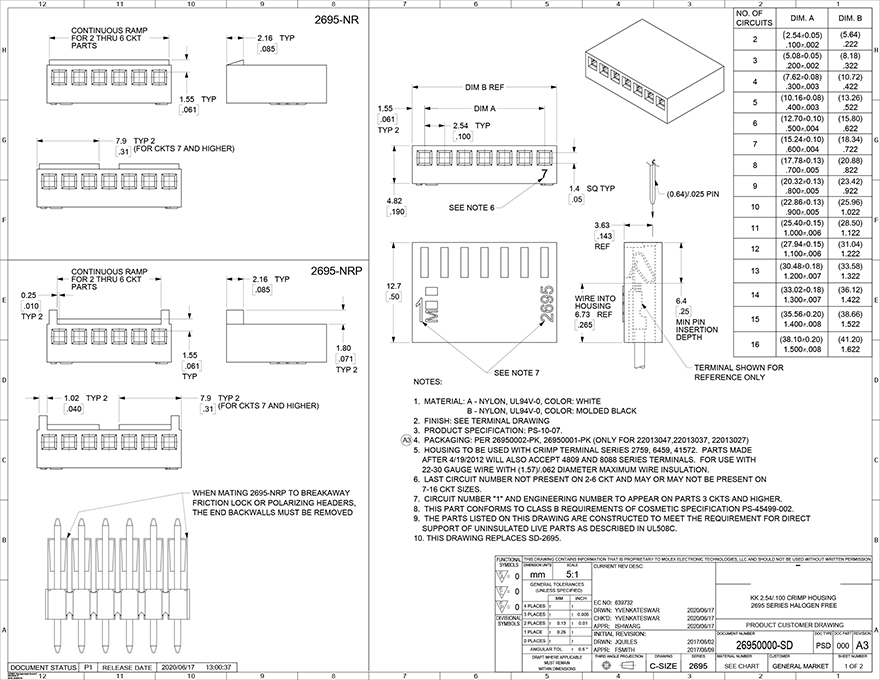

Product datasheet

For more information, please download
