Hot sale original 5-146131-6 Connector Header Surface Mount 14 position 0.100" (2.54mm)

Manufacturer Product Number

5-146131-6

Description

5-146131-6 CONN HEADER SMD 14POS 2.54MM

Package Condition

Tube

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

PCN-D3M Relay

Purpose

Testing was performed on the Relay to determine if it meets the requirements

of Tyco Electronics Specification, 108-79817, Rev. A.

Product Description

Type	Description
ANSC PART#	ANSC - 5-146131-6
Category	Connectors, Interconnects
	Rectangular Connectors
	Headers, Male Pins
Mfr	/
Series	AMPMODU Mod II
Packaging	Tube
Part Status	Active
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.320" (8.13mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	-
Operating Temperature	-65°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	30VAC
Mated Stacking Heights	-
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	-
Base Product Number	146131

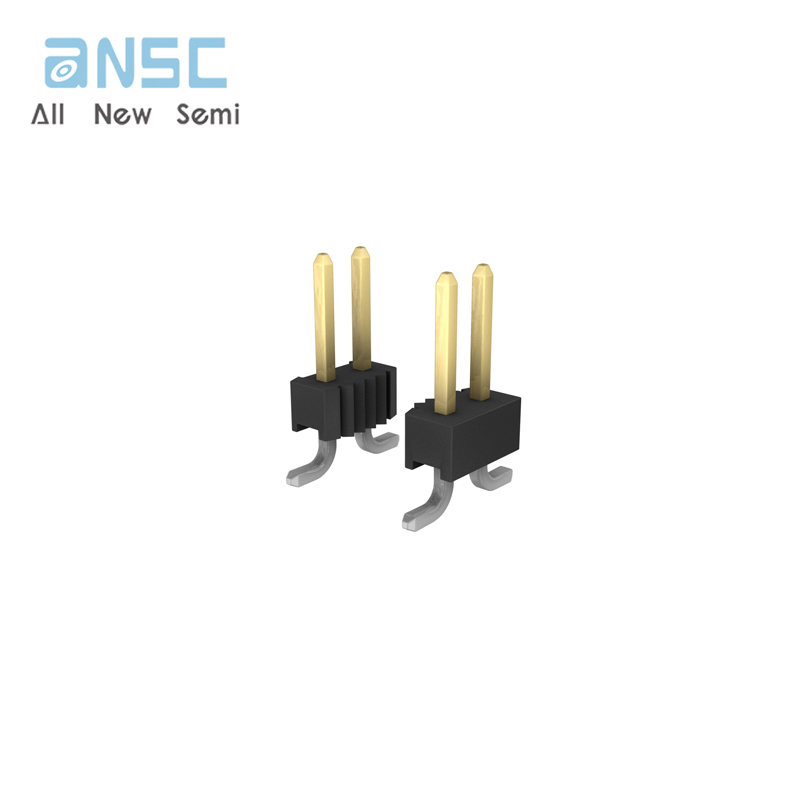

Product Photos

5-146131-6

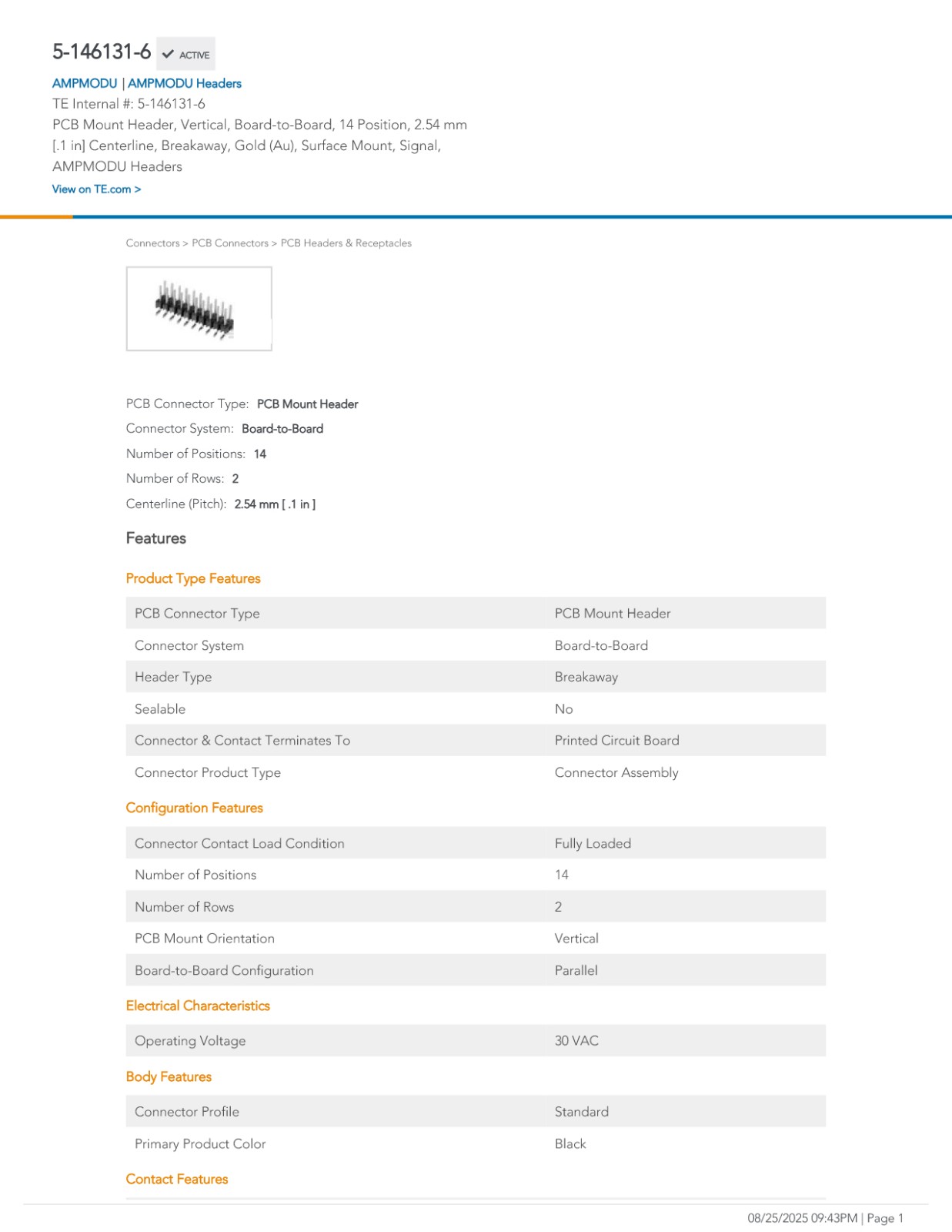

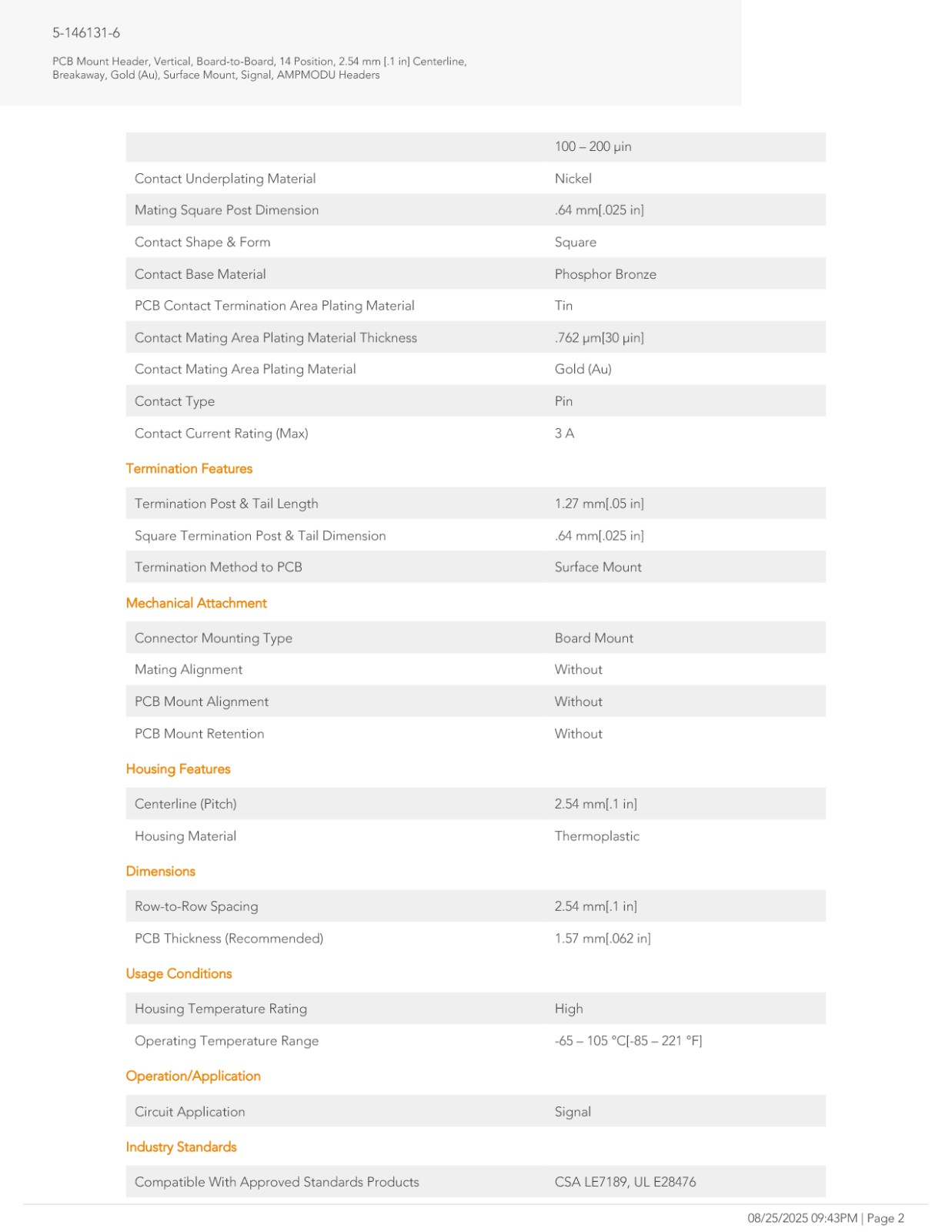

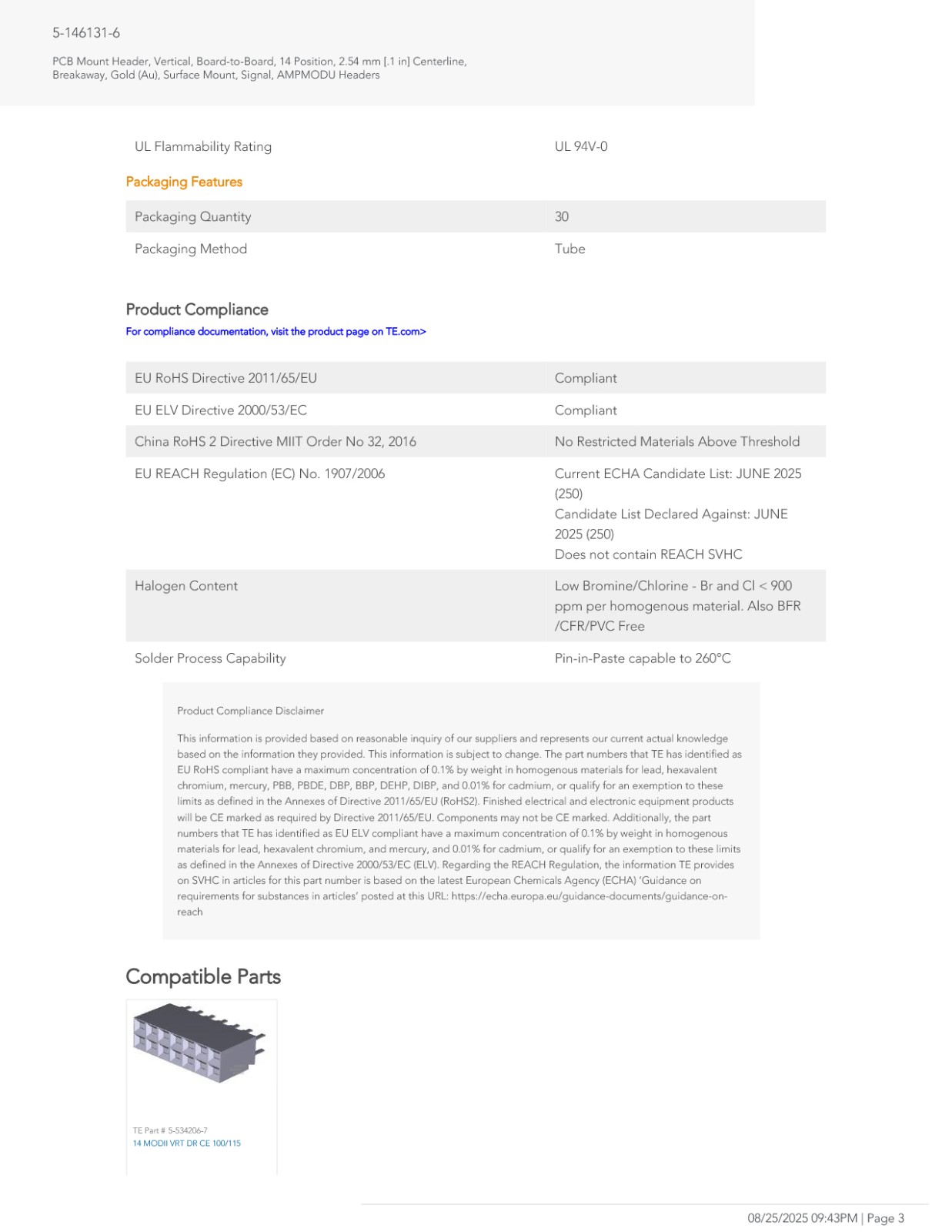

Product datasheet

For more information, please download
