Hot sale Original 52610-3072 Card Edge Connector 30 Contact Female Straight 0.039 inch Pitch Surface Mount Terminal Connectors
Manufacturer Product Number
52610-3072
Description
Original 52610-3072 Card Edge Connector 30 Contact Female Straight 0.039 inch Pitch Surface Mount Terminal Connectors
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| 52610-3072 Overview Packaging is in the form of FFC/FPC CONNECTOR.The mounting type of the device is Surface Mount.A Tape and Reel case is used to package the product.A product of the FFC/FPC SMT Series, it belongs to the range of products of that series.30 pins are on the device.Furthermore, there are other features available, such as EASY-ON, to name a few.A temperature below 85 °C is best for using it.The device must run at -40 °C degrees.Surface Mount represents the mounting point for the part.Contains 30 circuits. 52610-3072 Features FFC/FPC SMT series 52610-3072 Applications 52610-3072 FFC, FPC (Flat Flexible) Connectors applications. Automotive Electronics Telecommunications Data Technology Blowers Control panels Electrical substations Energy efficient lighting (LED) LED municipal outdoor and street lighting All Electrical Machinery Refrigeration control |
Product Description
| Type | Description |
| ANSC PART# | ANSC-52610-3072 |
| Ihs Manufacturer | Original |
| Factory Lead Time | 19 Weeks |
| Additional Feature | EASY-ON |
| Body Breadth | 0.142 inch |
| Body Depth | 0.226 inch |
| Body Length | 1.441 inch |
| Connector Type | FFC/FPC CONNECTOR |
| Contact Finish Mating | NOT SPECIFIED |
| Contact Finish Termination | Tin (Sn) |
| Contact Gender | FEMALE |
| Contact Material | PHOSPHOR BRONZE |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 20 mΩ |
| Contact Style | BELLOWED TYPE |
| DIN Conformance | NO |
| Dielectric Withstanding Voltage | 700VAC V |
| Durability | 30 Cycles |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insertion Force-Max | ZIF N |
| Insulation Resistance | 100000000 Ω |
| Insulator Material | POLYAMIDE |
| JESD-609 Code | e3 |
| MIL Conformance | NO |
| Mating Contact Pitch | 0.039 inch |
| Mixed Contacts | NO |
| Mounting Option 1 | LOCKING |
| Mounting Style | STRAIGHT |
| Mounting Type | BOARD |
| Number Of Connectors | ONE |
| Number Of PCB Rows | 2 |
| Number of Rows Loaded | 1 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Option | GENERAL PURPOSE |
| PCB Contact Pattern | STAGGERED |
| Plating Thickness | 4u inch |
| Rated Current (Signal) | 1 A |
| Reference Standard | UL |
| Terminal Pitch | 1 mm |
| Termination Type | SURFACE MOUNT |
| Total Number of Contacts | 30 |
| UL Flammability Code | 94V-0 |
| Withdrawl Force-Min | ZIF N |

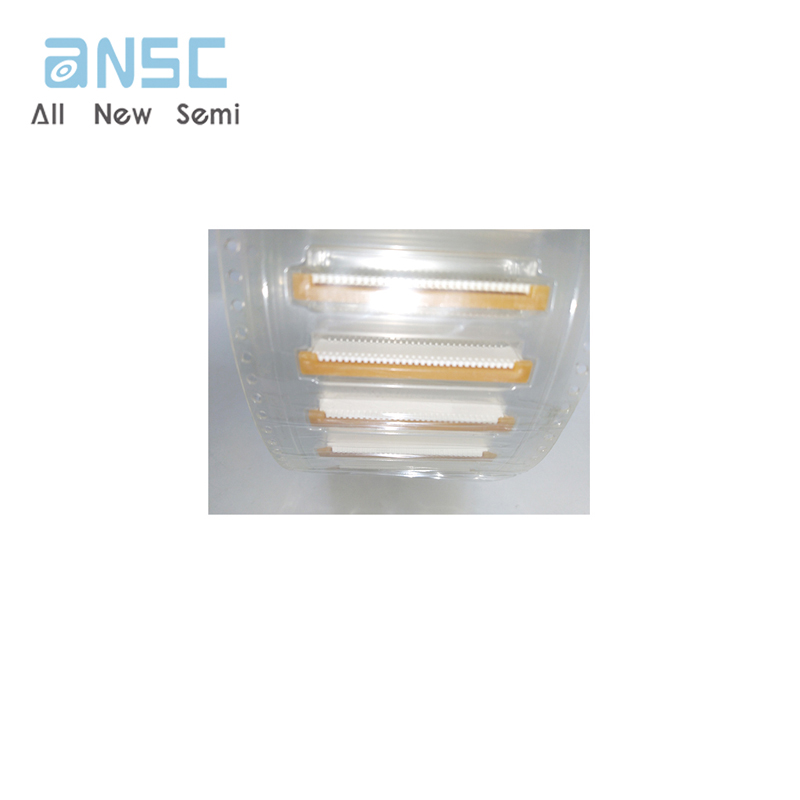

Product Photos

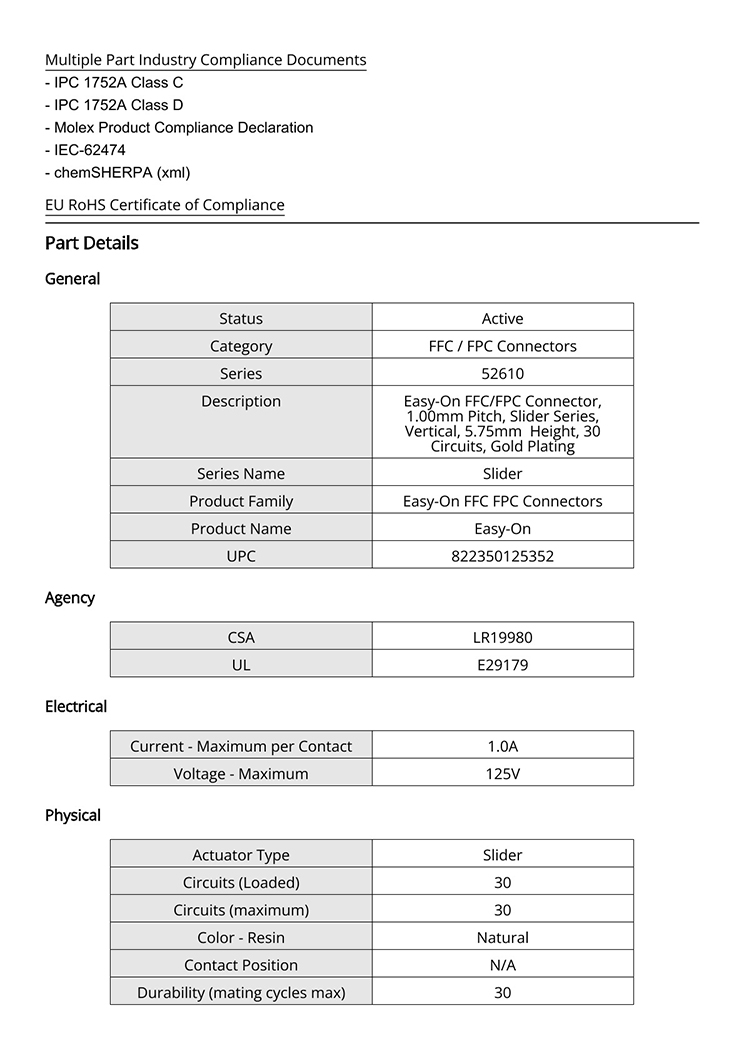

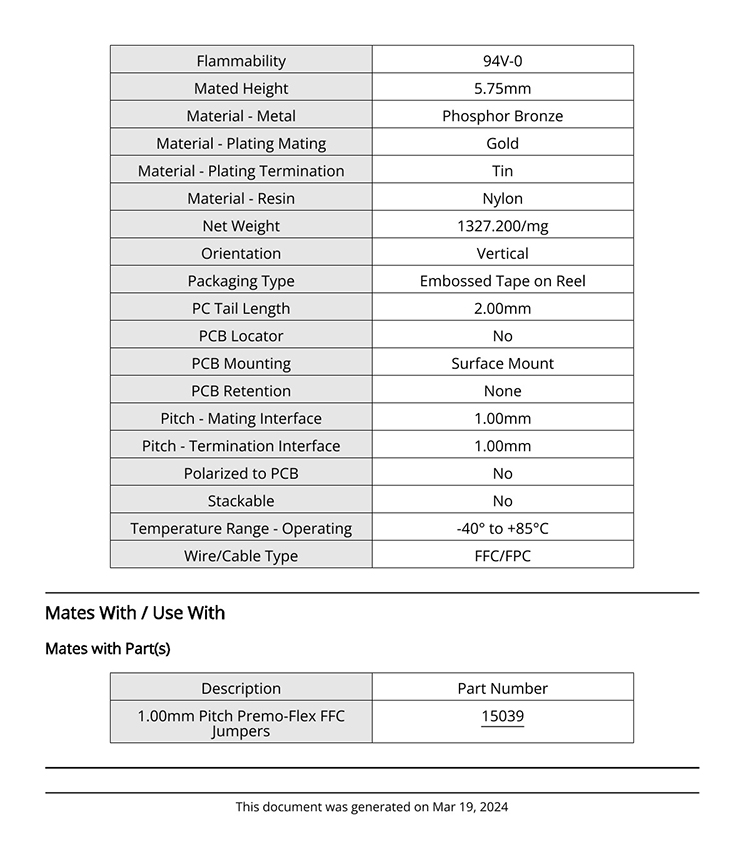

Product datasheet
For more information, please download
