Hot sale Original PJ-040CH Power Barrel Connector Jack 1 mm 3.40mm OD Through Hole Right Angle Black Board Guide
Manufacturer
Manufacturer Product Number
PJ-040CH
Description
CONN PWR JACK 1X3.4MM SOLDER Power Barrel Connector Jack 1.00mm ID (0.039"), 3.40mm OD (0.134") Through Hole, Right Angle
Package Condition
Bag
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - PJ-040CH |
|
Category |
Connectors, Interconnects Barrel Connectors Power Connectors |
|
Manufacturer |
- |
|
Series |
- |
|
Packaging |
Bag |
|
Part Status |
Active |
|
Connector Type |
Jack |
|
Gender |
Male |
|
Industry Recognized Mating Diameter |
1.00mm ID (0.039"), 3.40mm OD (0.134") |
|
Actual Diameter |
0.039" (1.00mm ID), 0.150" (3.80mm OD) |
|
Number of Positions/Contacts |
2 Conductors, 3 Contacts |
|
Internal Switch(s) |
Single Switch, Normally Closed |
|
Mounting Type |
Through Hole, Right Angle |
|
Mounting Feature |
- |
|
Termination |
Solder |
|
Shielding |
Unshielded |
|
Features |
Board Guide |
|
Insulation Color |
- |
|
Voltage - Rated |
24VDC |
|
Current Rating (Amps) |
3.5 A |
|
Mating Length/Depth |
0.339" (8.60mm) |
|
Ingress Protection |
- |
|
Material Flammability Rating |
UL94 V-0 |
|
Operating Temperature |
-25°C ~ 85°C |
|
Contact Material - Plating |
Silver |
|
Body Material |
- |
|
Includes |
- |
|
Housing Material |
Polyamide (PA66), Nylon 6/6 |
|
Contact Material |
Brass, Copper Alloy |
|
Thread Size |
- |
|
Body Color |
Black |
|
Base Product Number |
PJ-040 |

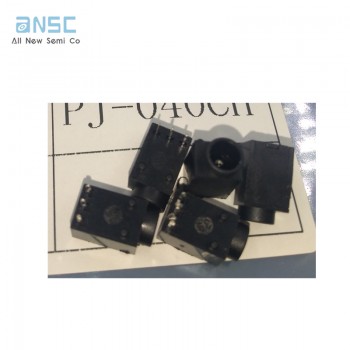

Actual image of the product
