Hot sale original B4B-XH-A(LF)(SN) Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal
Manufacturer Product Number
B4B-XH-A(LF)(SN)
Description
B4B-XH-A(LF)(SN) Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| B4B-XH-A(LF)(SN) Overview Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the XH Series.Other features include SHROUDED, TOP ENTRY, to name just a few.There is a mounting hole at Through Hole.Devices operate at -25°C~85°C operating temperatures. B4B-XH-A(LF)(SN) FeaturesXH series B4B-XH-A(LF)(SN) Applications B4B-XH-A(LF)(SN) Rectangular Connectors applications. Embedded systems Datacom Communication Medical technology Military Technology Measuring & Control Technology Instrumentation Automotive Electronics Telecommunications Data Technology |
Product Description
| Type# | Description |
| ANSC PART# | ANSC -B4B-XH-A(LF)(SN) |
| Manufacturer | / |
| Samacsys Manufacturer | / |
| Additional Feature | SHROUDED, TOP ENTRY |
| Body Breadth | 0.226 inch |
| Body Depth | 0.276 inch |
| Body Length | 0.488 inch |
| Body/Shell Style | PLUG |
| Connector Type | BOARD CONNECTOR |
| Contact Finish Mating | NOT APPLICABLE |
| Contact Finish Termination | Tin (Sn) |
| Contact Gender | MALE |
| Contact Material | NOT APPLICABLE |
| Contact Pattern | RECTANGULAR |
| Contact Resistance | 20 mΩ |
| Contact Style | SQ PIN-SKT |
| DIN Conformance | NO |
| Dielectric Withstanding Voltage | 1000VAC V |
| Filter Feature | NO |
| IEC Conformance | NO |
| Insulation Resistance | 1000000000 Ω |
| Insulator Color | WHITE |
| Insulator Material | POLYAMIDE66 |
| MIL Conformance | NO |
| Mating Contact Pitch | 0.098 inch |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed Contacts | NO |
| Mounting Option 1 | LOCKING |
| Mounting Style | STRAIGHT |
| Mounting Type | BOARD |
| Number Of Connectors | ONE |
| Number Of PCB Rows | 1 |
| Number of Rows Loaded | 1 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -25 °C |
| Option | GENERAL PURPOSE |
| PCB Contact Pattern | RECTANGULAR |
| Polarization Key | POLARIZED HOUSING |
| Rated Current (Signal) | 3 A |
| Reference Standard | TUV; UL |
| Terminal Length | 0.134 inch |
| Terminal Pitch | 2.5 mm |
| Termination Type | SOLDER |
| Total Number of Contacts | 4 |
| UL Flammability Code | 94V-0 |

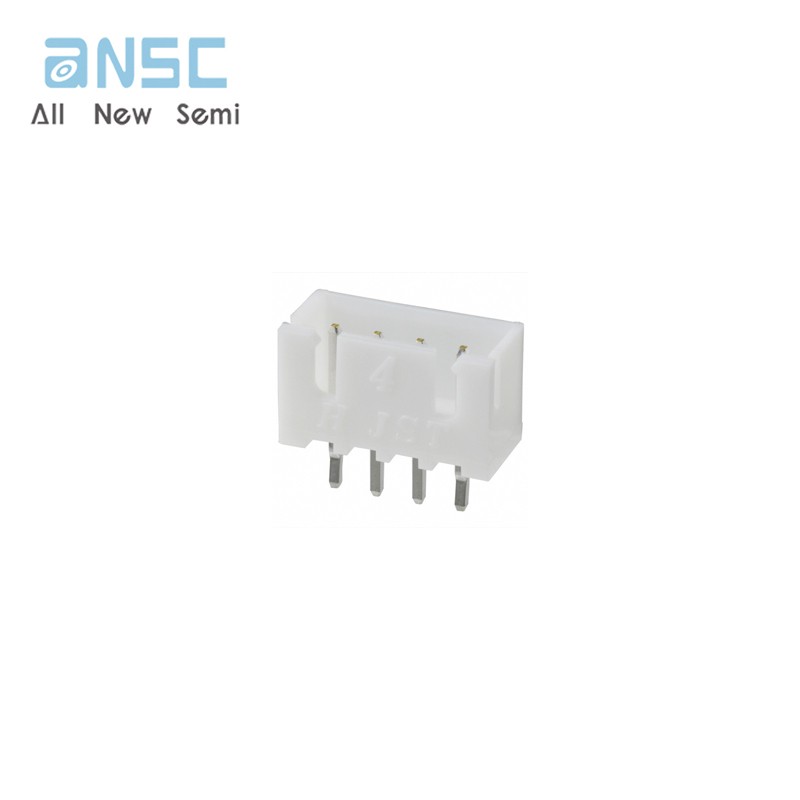

Actual image of the product

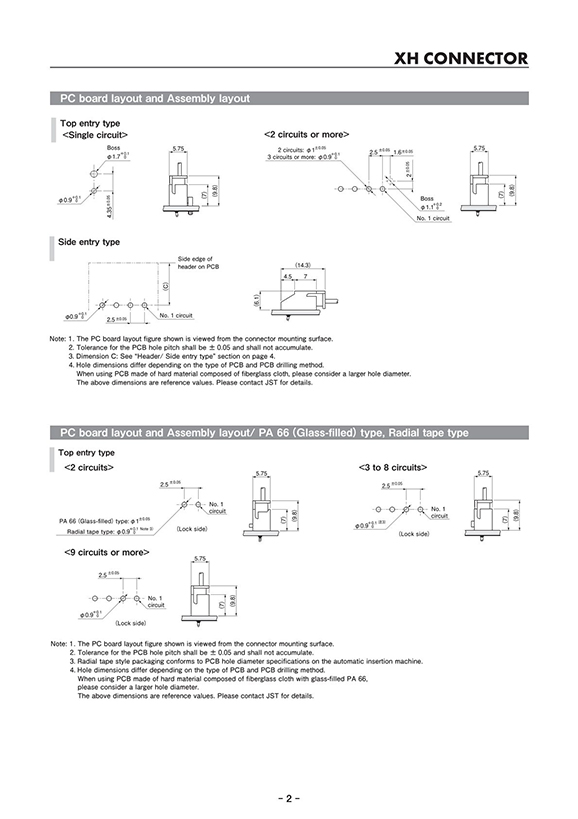

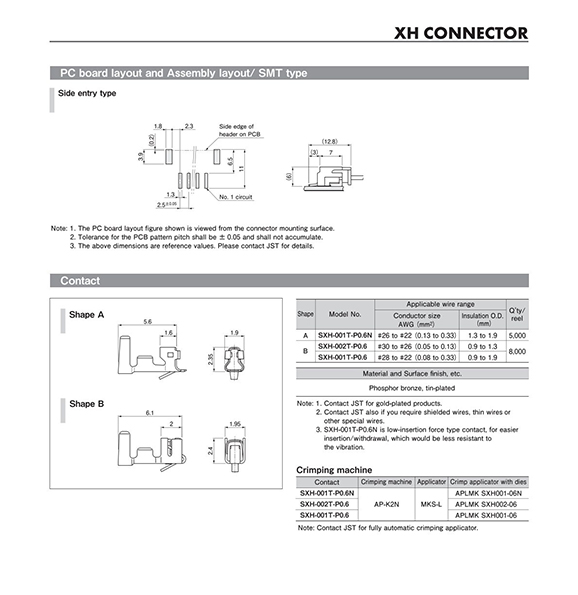

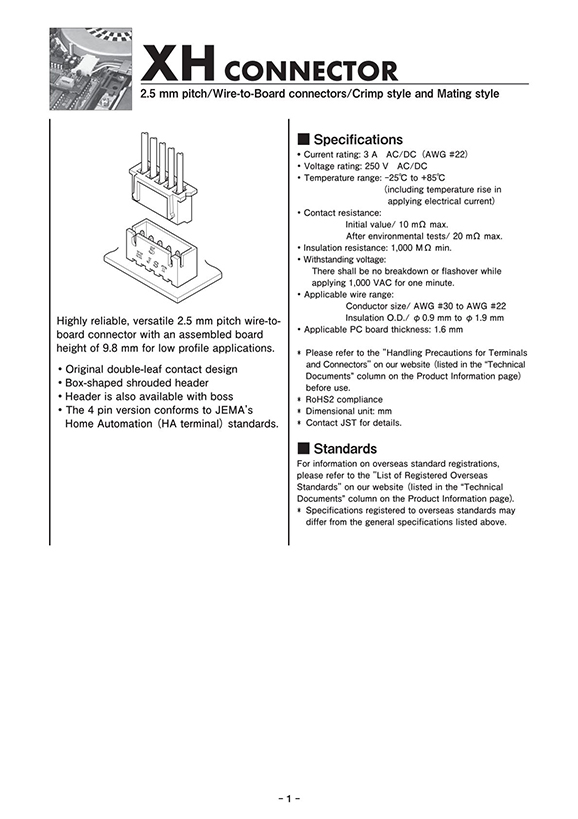

Product datasheet
For more information, please download
