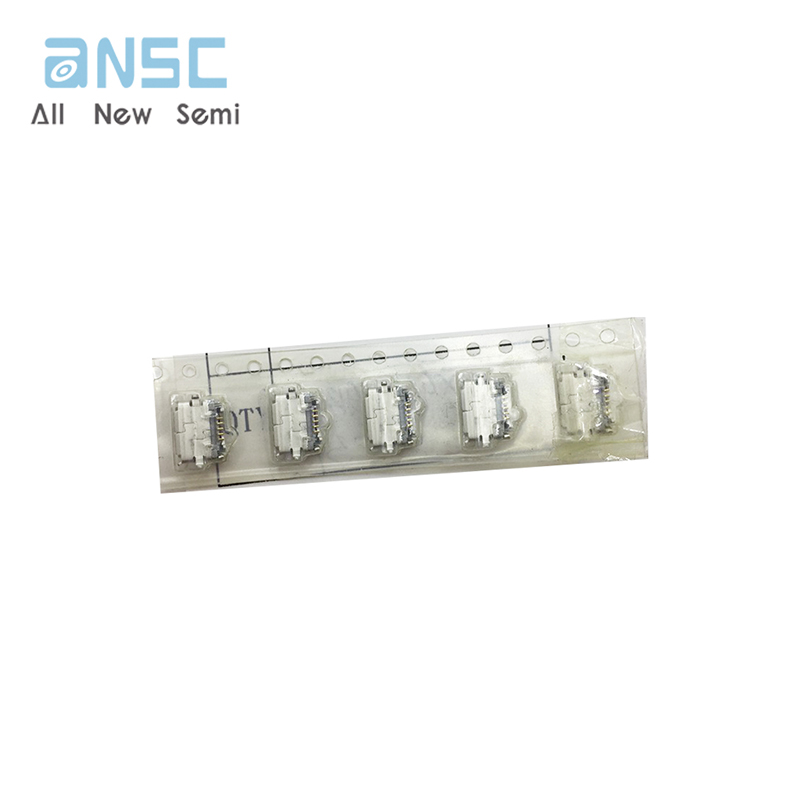

Hot sale Original ZX62D-AB-5P8(30) USB - micro AB USB 2.0 Receptacle Connector 5 Position Surface Mount Right Angle Through Hole
Manufacturer
Manufacturer Product Number
ZX62D-AB-5P8(30)
Description
ZX62D-AB-5P8(30) Connectors CONN RCPT USB2.0 MICRO AB SMD RA
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
Extremely small high reliability connectors complying with physical, electrical and environmental requirements of Micro-USB standard (USB 2.0). Receptacles and plugs are available in a wide variety of mounting and termination configurations, permitting their use in various applications.
Product Features
1. Size reduction
Compared with the standard Mini-B connectors, the size of ZX connectors is reduced by approximately 60% while still allowing a high-speed data transfer of 480 Mbps, specified in USB 2.0.
2. Receptacle styles
Two interface configurations: Micro-B and Micro-AB in standard, mid-mount and reverse mounting styles.
SMT and through-hole (shell) PC board terminations
3. Plug styles
Corresponding to the receptacle styles, two interface configurations:
Micro-B and Micro-A, with direct wire or PCB wire soldering.
Several plug styles can be used for data transmission, earphone or charging applications.
4. High durability
Unique contact and lock configuration assures high durability while maintaining easy insertion / disconnection. Fully mated condition (when mated with corresponding HRS connector) is confirmed by a
definite tactile sensation
5. RoHS compliant
All components and materials comply with the requirements of EU directive 20/95/EC
Product Applications
Mobile phones, PDA, portable music players, digital cameras, digital camcorders and other applications requiring high reliability Micro-B interface connectors.
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - ZX62D-AB-5P8(30) |
|
Category |
Connectors, Interconnects USB, DVI, HDMI Connectors USB, DVI, HDMI Connector Assemblies |
|
Manufacturer |
Original |
|
Series |
ZX |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Connector Type |
USB - micro AB |
|
Number of Contacts |
5 |
|
Gender |
Receptacle |
|
Specifications |
USB 2.0 |
|
Mounting Type |
Surface Mount, Right Angle; Through Hole |
|
Mounting Feature |
Bottom Mount, Horizontal |
|
Termination |
Solder |
|
Features |
Pick and Place, Solder Retention |
|
Ingress Protection |
- |
|
Operating Temperature |
-30°C ~ 85°C |
|
Number of Ports |
1 |
|
Current Rating (Amps) |
1A per Contact |
|
Voltage - Rated |
30VAC |
|
Mating Cycles |
10000 |
|
Shielding |
Shielded |
|
Contact Finish |
Gold |
|
Shell/Shielding Material |
Steel, Stainless |
|
Material Flammability Rating |
UL94 V-0 |
|
Insulation Color |
Gray |
|
Base Product Number |
ZX62 |
