Hot sale Original 5-1734839-0 Connector 50 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Product Number
5-1734839-0
Description
Original 5-1734839-0 Connector CONN FPC TOP 50POS 0.5MM R/A 50 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
The product is packaged in Connector, Receptacle, Socket.Surface Mount, Right Angle is the mounting type.Packaging for the product is carried out via a Tape & Reel (TR) case.Temperatures below 85°C are best for using it.There's a minimum temperature of -40°C for this device.In this case, Surface Mount mounts the part.The memory's operating supply voltage is 250V.The device is operating at -20°C~85°C Operating Temperature.
Product Applications
5-1734839-0 FFC, FPC (Flat Flexible) Connectors applications.
· Measuring & Control Technology
· Instrumentation
· Automotive Electronics
· Telecommunications
· Data Technology
· Blowers
· Control panels
· Electrical substations
· Energy efficient lighting (LED)
· LED municipal outdoor and street lighting
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - 5-1734839-0 |
|
Category |
Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies |
|
Manufacturer |
- |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Flat Flex Type |
FPC |
|
Mounting Type |
Surface Mount, Right Angle |
|
Connector/Contact Type |
Contacts, Top |
|
Number of Positions |
50 |
|
Pitch |
0.020" (0.50mm) |
|
Termination |
Solder |
|
FFC, FCB Thickness |
0.30mm |
|
Height Above Board |
0.081" (2.05mm) |
|
Locking Feature |
Slide Lock |
|
Cable End Type |
Tapered |
|
Contact Material |
Phosphor Bronze |
|
Contact Finish |
Gold |
|
Housing Material |
Thermoplastic |
|
Actuator Material |
Thermoplastic |
|
Features |
Solder Retention, Zero Insertion Force (ZIF) |
|
Voltage Rating |
250V |
|
Operating Temperature |
-20°C ~ 85°C |
|
Material Flammability Rating |
UL94 V-0 |
|
Current Rating (Amps) |
0.5A |
|
Contact Finish Thickness |
Flash |
|
Housing Color |
Natural |
|
Actuator Color |
Ivory |
|
Mating Cycles |
- |
|
Base Product Number |
1734839 |

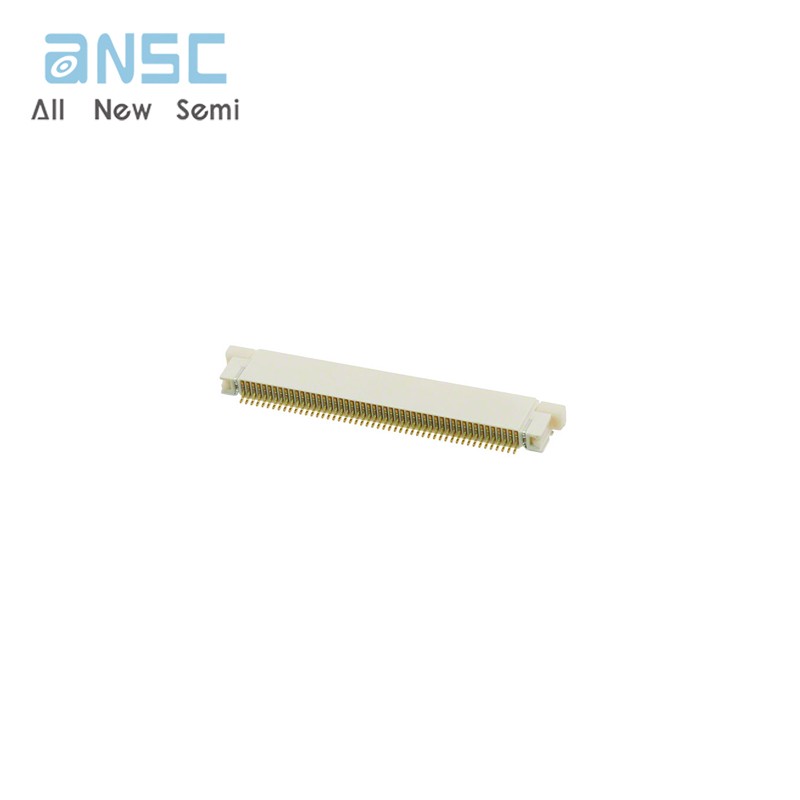

Actual image of the product

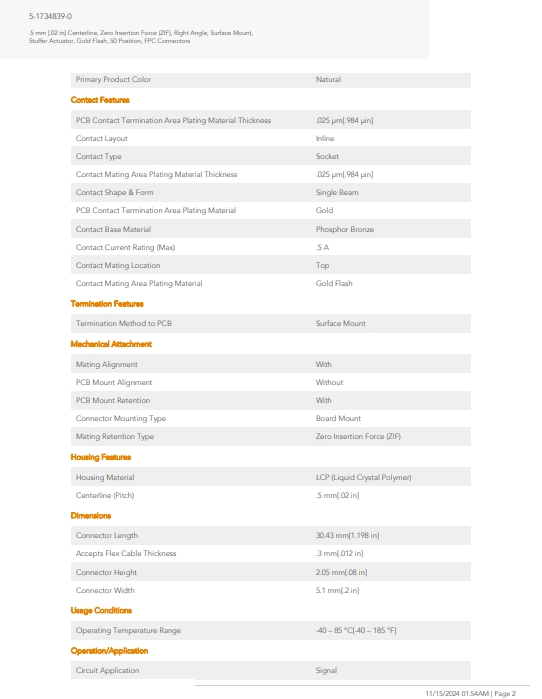

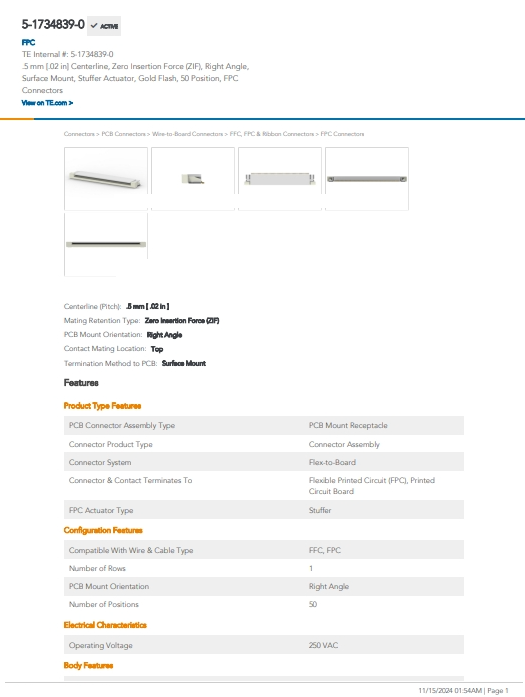

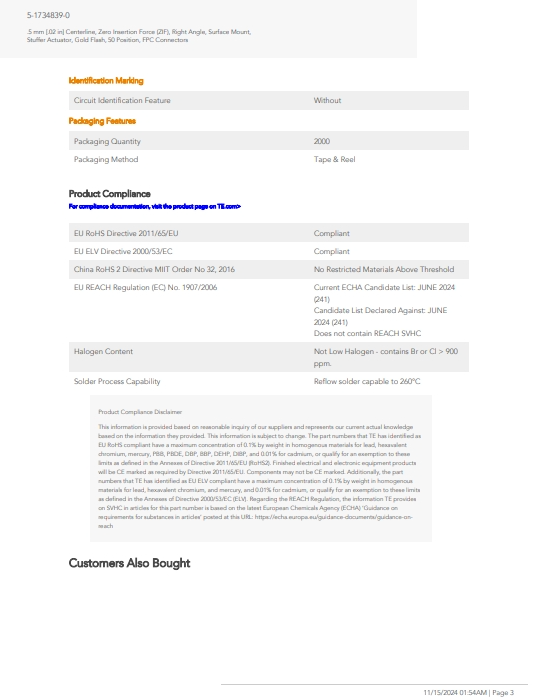

Product datasheet
