Hot sale Original 47257-0001 Audio Connectors 3.50mm 12VDC 1A Gold Headphone Phone Jack Stereo (3 Conductor, TRS) Connector
Manufacturer Product Number
47257-0001
Description
Original 47257-0001 Audio Connectors 3.50mm 12VDC 1A Gold Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - 47257-0001 |
|
Category |
Connectors, Interconnects Barrel Connectors Audio Connectors |
|
Mfr |
- |
|
Series |
47257 |
|
Packaging |
Tube |
|
Part Status |
Last Time Buy |
|
Connector Type |
Phone Jack |
|
Gender |
Female |
|
Signal Lines |
Stereo (3 Conductor, TRS) |
|
Industry Recognized Mating Diameter |
3.50mm (0.141", 1/8", Mini Plug) - Headphone |
|
Actual Diameter |
0.140" (3.56mm) |
|
Number of Positions/Contacts |
3 Conductors, 4 Contacts |
|
Internal Switch(s) |
Single Switch |
|
Mounting Type |
Through Hole |
|
Termination |
Solder |
|
Shielding |
Unshielded |
|
Features |
Board Guide |
|
Insulation Color |
- |
|
Operating Temperature |
-40°C ~ 85°C |
|
Voltage - Rated |
12VDC |
|
Current Rating (Amps) |
1 A |
|
Mating Length/Depth |
- |
|
Contact Material - Plating |
Gold |
|
Body Material |
- |
|
Body Color |
Black |
|
Includes |
- |
|
Housing Material |
Polyamide (PA), Nylon, Glass Filled |
|
Contact Material |
Brass, Phosphor Bronze |
|
Cable Opening |
- |
|
Panel Hole Size |
- |
|
Thread Size |
- |
|
Base Product Number |
047257 |
Actual image of the product

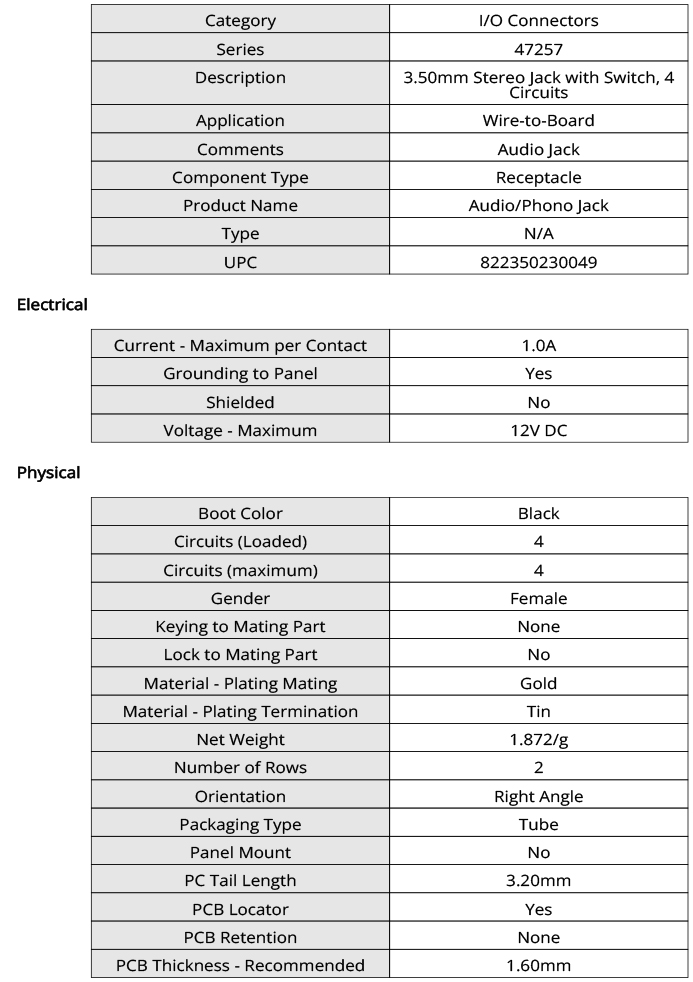

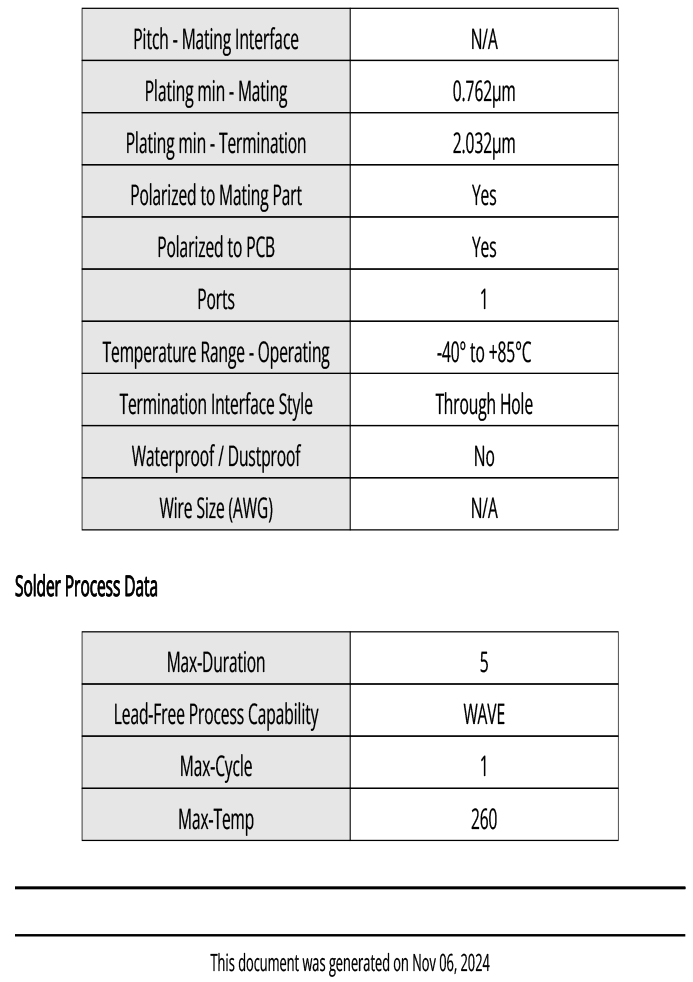

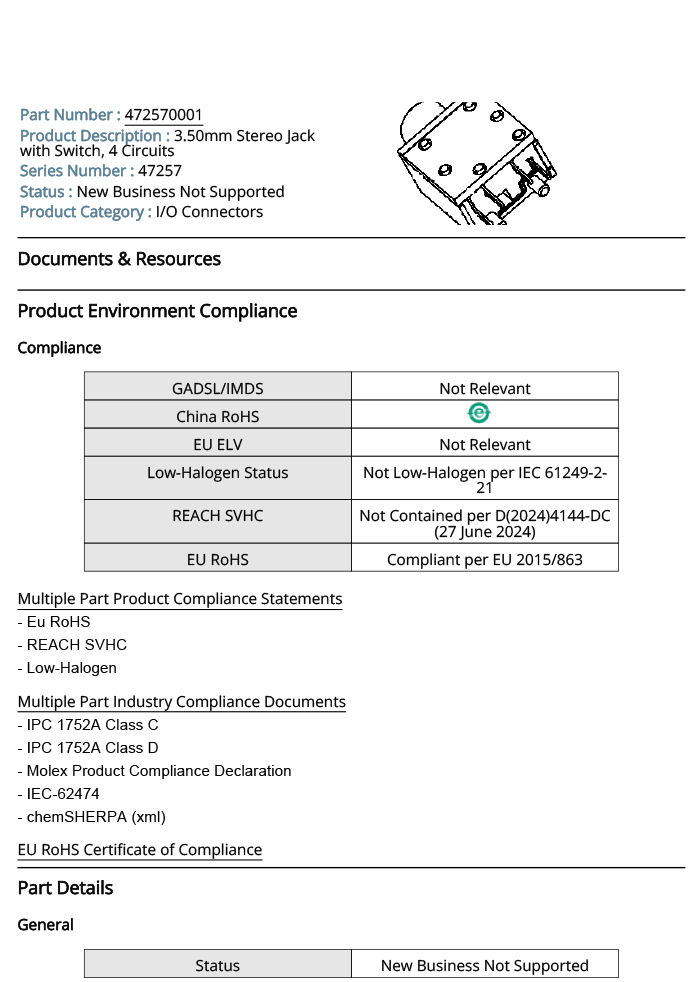

Product datasheet
For more information, please download
