Original BFB1624H Fan Blower 24VDC Rectangular/Round - 159mm L x 165mm H Ball 61.8 CFM (1.73m³/min) 2 Leads
Manufacturer
Manufacturer Product Number
BFB1624H
Description
BFB1624H FAN BLOWER 159X40MM 24VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
| PART# | BFB1624H |
|
category |
Fans, fans, thermal management Fan Brushless DC Fan (BLDC) |
|
manufacturer |
/ |
|
series |
BFB |
|
Packaging |
Tray |
|
Part status |
On sale |
|
Voltage - Rating |
24VDC |
|
Size / Dimensions |
Rectangular/Round - 159mm long x 165mm high |
|
Width |
40.00mm |
|
Airflow |
61.8 CFM (1.73 m³/min) |
|
Static pressure |
1.387" water column (345.5 Pa) |
|
Bearing type |
Roll-on |
|
Fan type |
Blower |
|
Characteristics |
Rotor locking protection |
|
Noise |
56.5dB（A） |
|
Power (W) |
17.16 W |
|
RPM |
2200 RPM |
|
Termination |
2 leads |
|
Intrusion protection |
- |
|
Operating temperature |
14 ~ 140°F（-10 ~ 60°C） |
|
Certification body |
CE，CSA，UL，VDE |
|
weight |
1.3 lbs (589.7 g) |
|
Rated current (amps) |
0.740A |
|
Voltage range |
14 ~ 26.4VDC |
|
Material - frame |
plastic |
|
Material – inserts |
plastic |
|
Service life at different temperatures |
50000 hours @ 40°C |
|
Base product number |
BFB1624 |

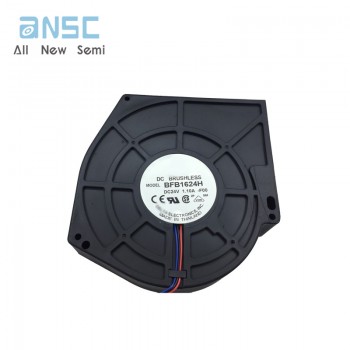

Actual image of the product
