Original electric axial flow cooling fan AFB1224SHE 24V Industrial axial fan
Manufacturer
Manufacturer Product Number
AFB1224SHE
Description
AFB1224SHE FAN AXIAL 120X38MM 24VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
AFB1224SHE |
|
category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
AFB |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 120mm L x 120mm H |
|
Width |
38.00mm |
|
Air Flow |
151.9 CFM (4.25m³/min) |
|
Static Pressure |
0.571 in H2O (142.2 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection |
|
Noise |
53.0dB(A) |
|
Power (Watts) |
12 W |
|
RPM |
3700 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 140°F (-10 ~ 60°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.565 lb (256.28 g) |
|
Current Rating (Amps) |
0.500A |
|
Voltage Range |
7 ~ 27.6VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
AFB1224 |

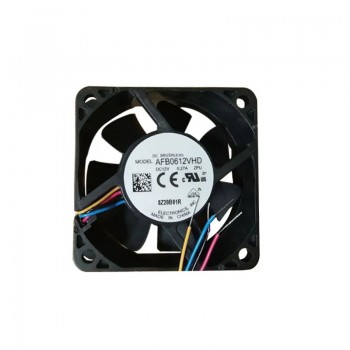

Actual image of the product
