Original Axial flow fan 4114NH6 DC24V 65W 120*120*38mm Transmitter cooling fan
Manufacturer
Manufacturer Product Number
4114NH6
Description
4114NH6 Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 259.0 CFM (7.25m³/min) 2 Wire Leads
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
4114NH6 |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
4100N |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 119mm L x 119mm H |
|
Width |
38.00mm |
|
Air Flow |
259.0 CFM (7.25m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
73.0dB(A) |
|
Power (Watts) |
65 W |
|
RPM |
8400 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
IP20 |
|
Operating Temperature |
-4 ~ 149°F (-20 ~ 65°C) |
|
Approval Agency |
CSA, UL, VDE |
|
Weight |
0.86 lb (390.09 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
16 ~ 30VDC |
|
Material - Frame |
Aluminum |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
62500 Hrs @ 40°C |
|
Base Product Number |
4114N |

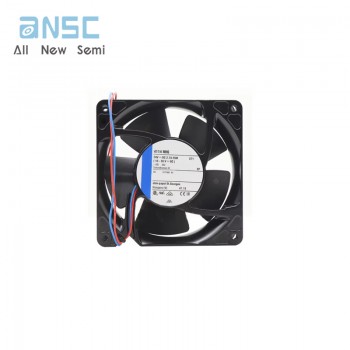

Actual image of the product
