Original KDE2412PMB1-6A Fan Tubeaxial 24VDC Square - 119.5mm L x 119.5mm H Ball 108.0 CFM (3.02m³/min) 2 Wire Leads
Manufacturer Product Number
KDE2412PMB1-6A
Description
KDE2412PMB1-6A FAN AXIAL 119.5X38.5MM 24VDC
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
KDE2412PMB1-6A |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
KDE |
|
Part Status |
Obsolete |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 119.5mm L x 119.5mm H |
|
Width |
38.50mm |
|
Air Flow |
108.0 CFM (3.02m³/min) |
|
Static Pressure |
0.310 in H2O (77.2 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
42.0dB(A) |
|
Power (Watts) |
6.7 W |
|
RPM |
3100 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 158°F (-10 ~ 70°C) |
|
Approval Agency |
CE, CUR, TUV, UL |
|
Weight |
0.719 lb (326.13 g) |
|
Current Rating (Amps) |
0.280A |
|
Voltage Range |
20.4 ~ 27.6VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT) |
|
Material - Blade |
Polybutylene Terephthalate (PBT) |
|
Lifetime @ Temp. |
- |

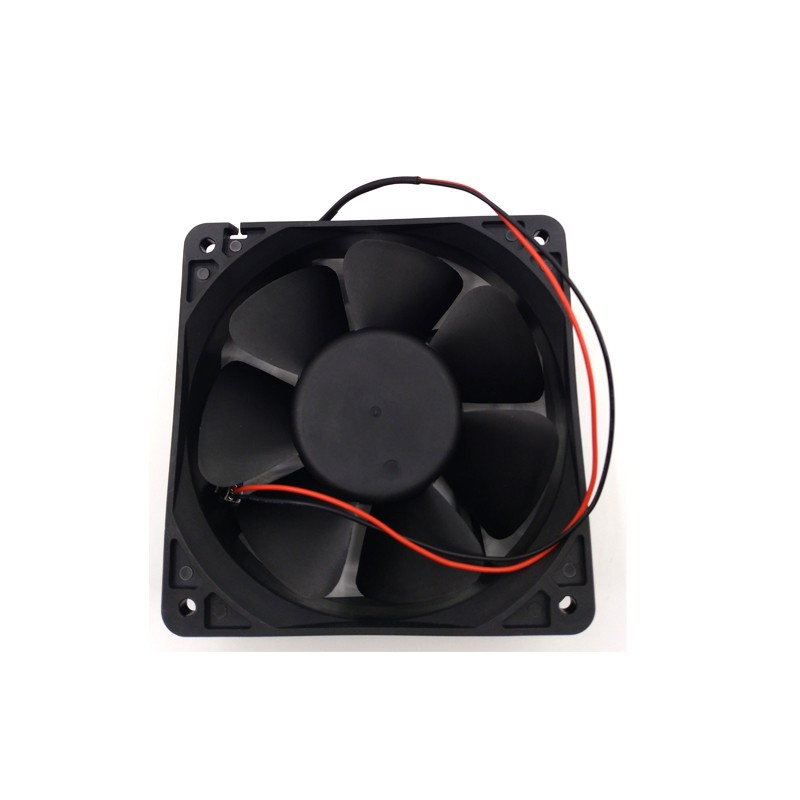

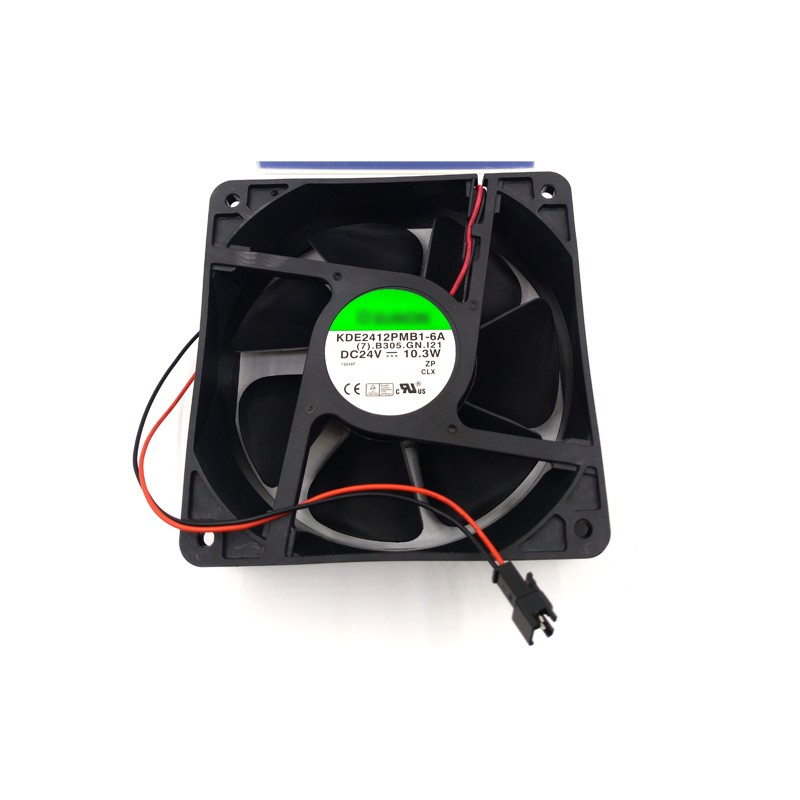

Actual image of the product
