Original Axial fan 7114N 24V 12W 0. UPS all-metal fan
Manufacturer
Manufacturer Product Number
7114N
Description
7114N Fan Tubeaxial 24VDC Round - 150mm Dia Ball 212.0 CFM (5.94m³/min) 2 Wire Leads
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
7114N |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
7100N |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Round - 150mm Dia |
|
Width |
38.00mm |
|
Air Flow |
212.0 CFM (5.94m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
55.0dB(A) |
|
Power (Watts) |
12 W |
|
RPM |
2850 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-13 ~ 162°F (-25 ~ 72°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
1.4 lbs (635.0 g) |
|
Current Rating (Amps) |
0.600A |
|
Voltage Range |
12 ~ 30VDC |
|
Material - Frame |
Aluminum |
|
Material - Blade |
Steel |
|
Lifetime @ Temp. |
80000 Hrs @ 40°C |
|
Base Product Number |
7114 |

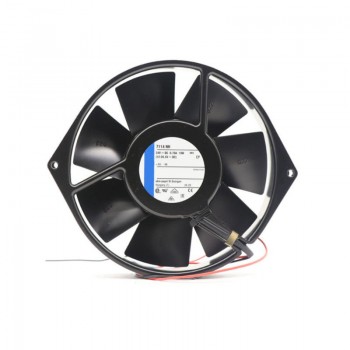

Actual image of the product
