Original electric axial flow cooling fan AFB0712HHD 12V DC Fan
Manufacturer
Manufacturer Product Number
AFB0712HHD
Description
AFB0712HHD FAN AXIAL 70X20MM 12VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
| PART# | AFB0712HHD |
|
category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
AFB |
|
Packaging |
Tray |
|
Part Status |
Obsolete |
|
Voltage - Rated |
12VDC |
|
Size / Dimension |
Square - 70mm L x 70mm H |
|
Width |
20.00mm |
|
Air Flow |
40.4 CFM (1.13m³/min) |
|
Static Pressure |
0.222 in H2O (55.3 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection |
|
Noise |
40.5dB(A) |
|
Power (Watts) |
3 W |
|
RPM |
4400 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 158°F (-10 ~ 70°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.154 lb (69.85 g) |
|
Current Rating (Amps) |
0.250A |
|
Voltage Range |
5 ~ 13.8VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
AFB0712 |

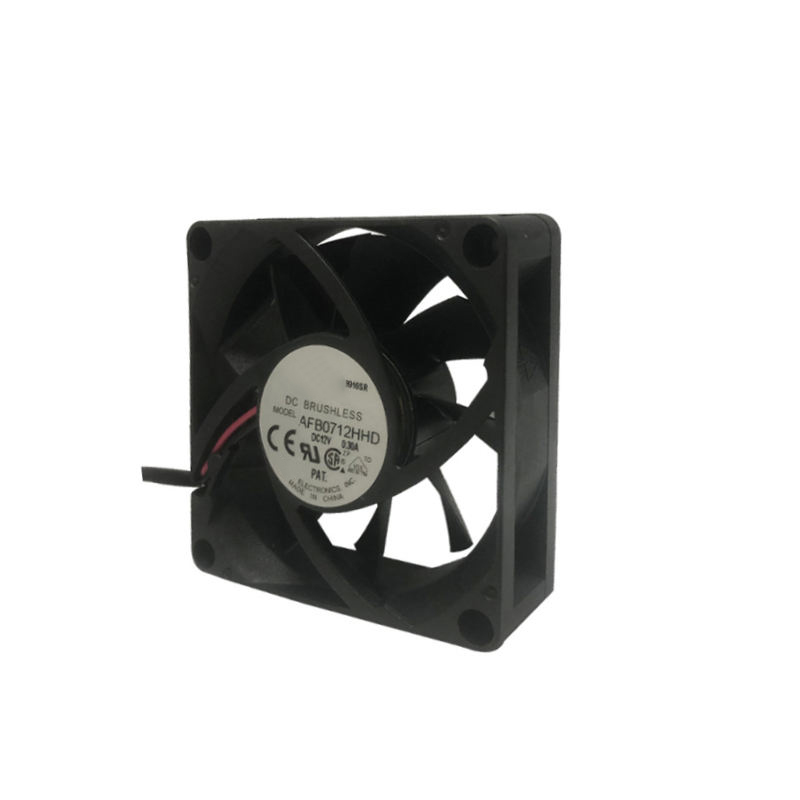

Actual image of the product
