Original electric axial flow cooling fan AFB0712HB 12V 0.18A 7015 LB MB HHB V HB
Manufacturer
Manufacturer Product Number
AFB0712HB
Description
AFB0712HB FAN AXIAL 70X15MM 12VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
AFB0712HB |
|
category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
AFB |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
12VDC |
|
Size / Dimension |
Square - 70mm L x 70mm H |
|
Width |
15.00mm |
|
Air Flow |
33.2 CFM (0.930m³/min) |
|
Static Pressure |
0.162 in H2O (40.3 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection |
|
Noise |
34.5dB(A) |
|
Power (Watts) |
2.16 W |
|
RPM |
3800 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 158°F (-10 ~ 70°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.104 lb (47.17 g) |
|
Current Rating (Amps) |
0.180A |
|
Voltage Range |
4 ~ 13.8VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
AFB0712 |

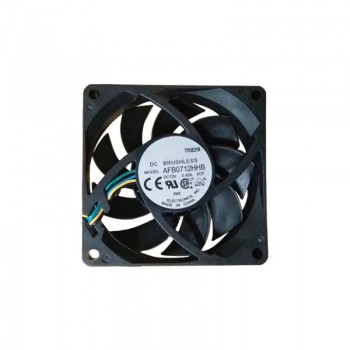

Actual image of the product
