Original AFB0612VHC Fan Tube Shaft 12VDC Square - 60mm L x 60mm H Ball 27.7 CFM (0.776m³/min) 2 leads
Manufacturer Product Number
AFB0612VHC
Description
AFB0612VHC FAN AXIAL 60X13MM 12VDC WIRE
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
AFB0612VHC |
|
category |
Fans, fans, thermal management Fan Brushless DC Fan (BLDC) |
|
manufacturer |
/ |
|
series |
AFB |
|
Packaging |
Bulk |
|
Part status |
Discontinued |
|
Voltage - Rating |
12VDC |
|
Size / Dimensions |
Square - 60mm long x 60mm high |
|
Width |
13.00mm |
|
Airflow |
27.7 CFM (0.776 m³/min) |
|
Static pressure |
0.252" water column (62.8 Pa) |
|
Bearing type |
Roll-on |
|
Fan type |
Tube shaft type |
|
Characteristics |
Rotor locking protection |
|
Noise |
38.0dB（A） |
|
Power (W) |
2.88 W |
|
RPM |
5400 RPM |
|
Termination |
2 leads |
|
Intrusion protection |
- |
|
Operating temperature |
14~158°F(-10~70°C) |
|
Certification body |
CE,CSA,UL,VDE |
|
weight |
0.074 lbs (33.56 g) |
|
Rated current (amps) |
0.240A |
|
Voltage range |
7 ~ 13.8VDC |
|
Material - frame |
plastic |
|
Material – inserts |
plastic |
|
Service life at different temperatures |
70000 hours @ 40°C |
|
Base product number |
AFB0612 |

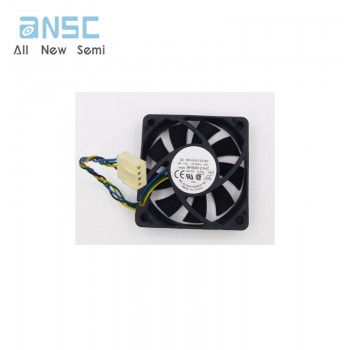

Actual image of the product
