FFB0924EHE Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 110.2 CFM (3.09m³/min) 2 Wire Leads
Manufacturer
Manufacturer Product Number
FFB0924EHE
Description
FFB0924EHE FAN AXIAL 92X38MM 24VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
FFB0924EHE |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
FFB |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 92mm L x 92mm H |
|
Width |
38.00mm |
|
Air Flow |
110.2 CFM (3.09m³/min) |
|
Static Pressure |
0.665 in H2O (165.6 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection |
|
Noise |
55.0dB(A) |
|
Power (Watts) |
12 W |
|
RPM |
4800 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 140°F (-10 ~ 60°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.437 lb (198.00 g) |
|
Current Rating (Amps) |
0.500A |
|
Voltage Range |
14 ~ 27.6VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
FFB0924 |

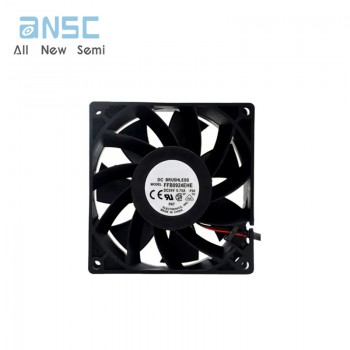

Actual image of the product
