Original Axial flow fan 614 NGH DC24V 110mA 2.6W 60X60X25mm cooling fan
Manufacturer
Manufacturer Product Number
614 NGH
Description
614 NGH FAN AXIAL 60X25.4MM 24VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
614 NGH |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
600NG |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 60mm L x 60mm H |
|
Width |
25.40mm |
|
Air Flow |
25.3 CFM (0.708m³/min) |
|
Static Pressure |
0.363 in H2O (90.5 Pa) |
|
Bearing Type |
Sintec |
|
Fan Type |
Tubeaxial |
|
Features |
Auto Restart, Locked Rotor Protection |
|
Noise |
41.0dB(A) |
|
Power (Watts) |
2.5 W |
|
RPM |
5600 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
CE, CSA, EAC, UL, VDE |
|
Weight |
0.146 lb (66.22 g) |
|
Current Rating (Amps) |
0.103A |
|
Voltage Range |
18 ~ 26VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
614N |

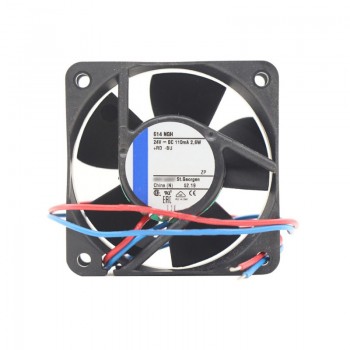

Actual image of the product
