Original Axial flow fan 8414NGM 8025 24V 1.4W 0.06A 2600RPM 26dBA 2-wire silent Computer fan
Manufacturer
Manufacturer Product Number
8414NGM
Description
8414NGM FAN AXIAL 80X25.4MM 24VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
8414NGM |
|
category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
8400N |
|
Packaging |
Box |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 80mm L x 80mm H |
|
Width |
25.40mm |
|
Air Flow |
34.1 CFM (0.955m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Sintec |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
26.0dB(A) |
|
Power (Watts) |
1.4 W |
|
RPM |
2600 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.209 lb (94.8 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
18 ~ 28VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
80000 Hrs @ 40°C |
|
Base Product Number |
8414 |

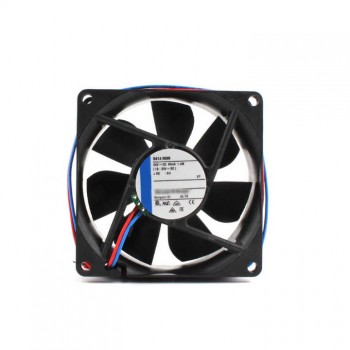

Actual image of the product
