Original 4414ML Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 99.0 CFM (2.77m³/min) 2 Wire Leads
Manufacturer
Manufacturer Product Number
4414ML
Description
4414ML Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 99.0 CFM (2.77m³/min) 2 Wire Leads
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
| PART# | 4414ML |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
4400 |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 119mm L x 119mm H |
|
Width |
38.00mm |
|
Air Flow |
99.0 CFM (2.77m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
40.0dB(A) |
|
Power (Watts) |
3.2 W |
|
RPM |
3000 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 176°F (-20 ~ 80°C) |
|
Approval Agency |
- |
|
Weight |
0.595 lb (269.89 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
12 ~ 28VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
67500 Hrs @ 40°C |
|
Base Product Number |
4414 |

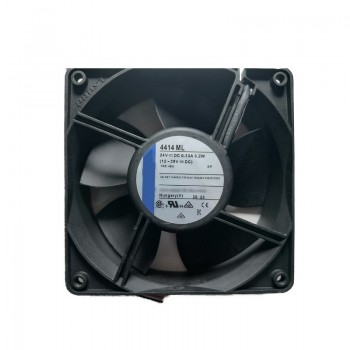

Actual image of the product
