Original EFB0412HHD Fan Tube Shaft 12VDC Square - 40mm L x 40mm H Ball 9.4 CFM (0.263m³/min) 2 leads
Manufacturer Product Number
EFB0412HHD
Description
EFB0412HHD FAN AXIAL 40X20MM 12VDC WIRE
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
EFB0412HHD |
|
category |
Fans, fans, thermal management Fan Brushless DC Fan (BLDC) |
|
manufacturer |
/ |
|
series |
EFB |
|
Packaging |
Bulk |
|
Part status |
On sale |
|
Voltage - Rating |
12VDC |
|
Size / Dimensions |
Square - 40mm long x 40mm high |
|
Width |
20.00mm |
|
Airflow |
9.4 CFM (0.263 m³/min) |
|
Static pressure |
0.354" water column (88.2 Pa) |
|
Bearing type |
Roll-on |
|
Fan type |
Tube shaft type |
|
Characteristics |
Rotor locking protection |
|
Noise |
30.5dB（A） |
|
Power (W) |
1.2 W |
|
RPM |
8200 RPM |
|
Termination |
2 leads |
|
Intrusion protection |
- |
|
Operating temperature |
14 ~ 158°F（-10 ~ 70°C） |
|
Certification body |
CE，CSA，UL，VDE |
|
weight |
0.073 lbs (33.11 g) |
|
Rated current (amps) |
0.100A |
|
Voltage range |
7 ~ 13.8VDC |
|
Material - frame |
plastic |
|
Material – inserts |
plastic |
|
Service life at different temperatures |
70000 hours @ 40°C |
|
Base product number |
EFB0412 |

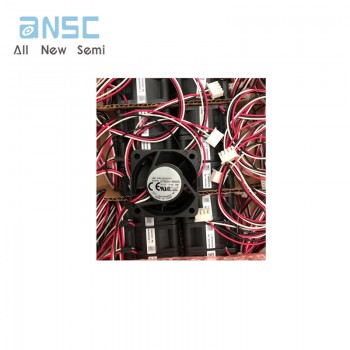

Actual image of the product
