In stock Original DC axial cooling fans 9HV0412P3K001
Manufacturer
Manufacturer Product Number
9HV0412P3K001
Description
9HV0412P3K001 Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 29.3 CFM (0.820m³/min) 4 Wire Leads
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
9HV0412P3K001 |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
San Ace 40 |
|
Packaging |
Box |
|
Part Status |
Active |
|
Voltage - Rated |
12VDC |
|
Size / Dimension |
Square - 40mm L x 40mm H |
|
Width |
28.00mm |
|
Air Flow |
29.3 CFM (0.820m³/min) |
|
Static Pressure |
4.420 in H2O (1100.0 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
PWM Control, Speed Sensor (Tach) |
|
Noise |
65.0dB(A) |
|
Power (Watts) |
18.3 W |
|
RPM |
25000 RPM |
|
Termination |
4 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 140°F (-20 ~ 60°C) |
|
Approval Agency |
CSA, TUV, UL |
|
Weight |
0.133 lb (60.33 g) |
|
Current Rating (Amps) |
1.52A |
|
Voltage Range |
10.8 ~ 12.6VDC |
|
Material - Frame |
Aluminum |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
40000 Hrs @ 60°C |
|
Base Product Number |
9HV0412 |

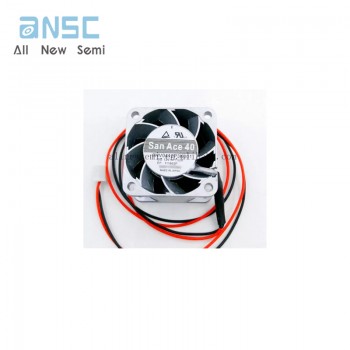

Actual image of the product
