Original Axial flow fan DV6224/2 Converter cooling fan 37W 24V 17251
Manufacturer
Manufacturer Product Number
DV6224/2
Description
DV6224/2 Converter cooling fan 37W 24V 17251
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
DV6224/2 |
|
category |
Fans, fans, thermal management Fan Brushless DC Fan (BLDC) |
|
manufacturer |
/ |
|
series |
DV6200 |
|
Packaging |
Bulk |
|
Part status |
On sale |
|
Voltage - Rating |
24VDC |
|
Size / Dimensions |
Round - 171.5mm diameter |
|
Width |
50.80mm |
|
Airflow |
317.8 CFM (8.90 m³/min) |
|
Static pressure |
- |
|
Bearing type |
Roll-on |
|
Fan type |
Tube shaft type |
|
Characteristics |
Speed Sensor (Tachometer) |
|
Noise |
63.0dB（A） |
|
Power (W) |
40 W |
|
RPM |
4300 RPM |
|
Termination |
3 leads |
|
Intrusion protection |
- |
|
Operating temperature |
-4 ~ 167°F (-20 ~ 75°C) |
|
Certification body |
CE,CSA,UL,VDE |
|
weight |
1.8 lbs (816.5 g) |
|
Rated current (amps) |
- |
|
Voltage range |
16 ~ 28VDC |
|
Material - frame |
Aluminum |
|
Material – inserts |
Polyamide (PA), nylon, glass fiber reinforced |
|
Service life at different temperatures |
180000 hours @ 40°C |
|
Base product number |
DV6224 |

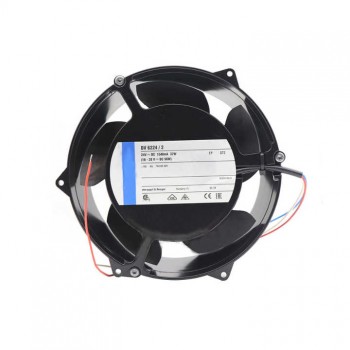

Actual image of the product
