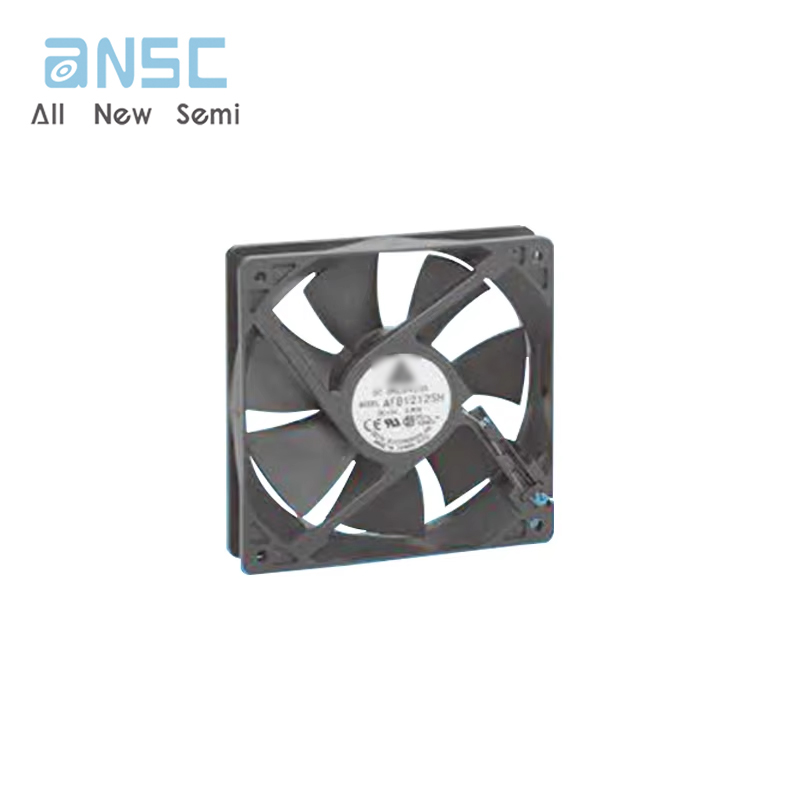

Original electric axial flow cooling fan AFB1224SH 12025 subrack 24V DC cooling fan
Manufacturer
Manufacturer Product Number
AFB1224SH
Description
AFB1224SH FAN AXIAL 120X25.4MM 24VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
AFB1224SH |
|
category |
Fans, fans, thermal management Fan Brushless DC Fan (BLDC) |
|
manufacturer |
/ |
|
series |
AFB |
|
Packaging |
box |
|
Part status |
On sale |
|
Voltage - Rating |
24VDC |
|
Size / Dimensions |
Square - 120mm long x 120mm high |
|
Width |
25.40mm |
|
Airflow |
113.1 CFM (3.17 m³/min) |
|
Static pressure |
0.430" water column (107.1 Pa) |
|
Bearing type |
Roll-on |
|
Fan type |
Tube shaft type |
|
Characteristics |
Rotor locking protection |
|
Noise |
46.5dB（A） |
|
Power (W) |
6.72 W |
|
RPM |
3400 RPM |
|
Termination |
2 leads |
|
Intrusion protection |
- |
|
Operating temperature |
14~140°F(-10~60°C) |
|
Certification body |
CE,CSA,UL,VDE |
|
weight |
0.437 lb (198.00 g) |
|
Rated current (amps) |
0.280A |
|
Voltage range |
14 ~ 27.6VDC |
|
Material - frame |
plastic |
|
Material – inserts |
plastic |
|
Service life at different temperatures |
70000 hours @ 40°C |
|
Base product number |
AFB1224 |
Actual image of the product
