Original Axial flow fan 8214J/2N communication equipment DC fan 10.8W 24V
Manufacturer
Manufacturer Product Number
8214J/2N
Description
8214J/2N communication equipment DC fan 10.8W 24V
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
8214J/2N |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
8200J |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 80mm L x 80mm H |
|
Width |
38.00mm |
|
Air Flow |
78.0 CFM (2.18m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection, Speed Sensor (Tach) |
|
Noise |
55.0dB(A) |
|
Power (Watts) |
10 W |
|
RPM |
8400 RPM |
|
Termination |
3 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
- |
|
Current Rating (Amps) |
- |
|
Voltage Range |
18 ~ 26.4VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
62500 Hrs @ 40°C |
|
Base Product Number |
8214J |

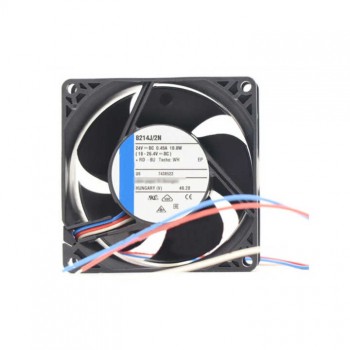

Actual image of the product
