Original Axial flow fan 255M 5VDC 0.25W DC fan
Manufacturer
Manufacturer Product Number
255M
Description
255M Fan Tubeaxial 5VDC Square - 25mm L x 25mm H Sintec 1.2 CFM (0.034m³/min) 2 Wire Leads
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
255M |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
250 |
|
Packaging |
Box |
|
Part Status |
Active |
|
Voltage - Rated |
5VDC |
|
Size / Dimension |
Square - 25mm L x 25mm H |
|
Width |
8.00mm |
|
Air Flow |
1.2 CFM (0.034m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Sintec |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
5.0dB(A) |
|
Power (Watts) |
200 mW |
|
RPM |
6000 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 158°F (-10 ~ 70°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.011 lb (4.99 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
4.5 ~ 5.5VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
45000 Hrs @ 20°C |
|
Base Product Number |
255 |

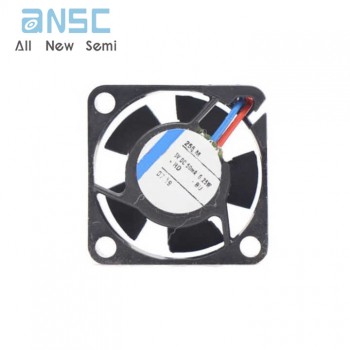

Actual image of the product
