Original GM0503PFV2-8 Fan Tubeaxial 5VDC Square - 30mm L x 30mm H Vapo-Bearing™ 4.6 CFM (0.129m³/min) 2 Wire Leads
Manufacturer
Manufacturer Product Number
GM0503PFV2-8
Description
GM0503PFV2-8 FAN AXIAL 30X10MM VAPO 5VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
| PART# | GM0503PFV2-8 |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
GM |
|
Part Status |
Obsolete |
|
Voltage - Rated |
5VDC |
|
Size / Dimension |
Square - 30mm L x 30mm H |
|
Width |
10.00mm |
|
Air Flow |
4.6 CFM (0.129m³/min) |
|
Static Pressure |
0.110 in H2O (27.4 Pa) |
|
Bearing Type |
Vapo-Bearing™ |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
20.0dB(A) |
|
Power (Watts) |
450 mW |
|
RPM |
8000 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 158°F (-10 ~ 70°C) |
|
Approval Agency |
CE, CUR, TUV, UL |
|
Weight |
0.019 lb (8.62 g) |
|
Current Rating (Amps) |
0.090A |
|
Voltage Range |
3 ~ 6VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT) |
|
Material - Blade |
Polybutylene Terephthalate (PBT) |
|
Lifetime @ Temp. |
- |

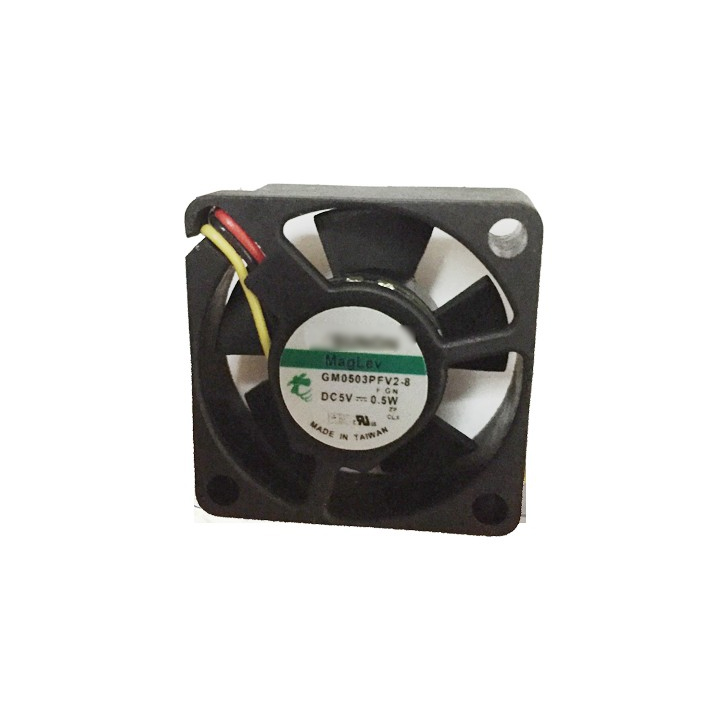

Actual image of the product
