Original EFB0424HHD Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 9.4 CFM (0.263m³/min) 2 Wire Leads
Manufacturer
Manufacturer Product Number
EFB0424HHD
Description
EFB0424HHD FAN AXIAL 40X20MM 24VDC WIRE
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
EFB0424HHD |
|
category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
EFB |
|
Packaging |
Box |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 40mm L x 40mm H |
|
Width |
20.00mm |
|
Air Flow |
9.4 CFM (0.263m³/min) |
|
Static Pressure |
0.354 in H2O (88.2 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection |
|
Noise |
30.5dB(A) |
|
Power (Watts) |
1.68 W |
|
RPM |
8200 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 158°F (-10 ~ 70°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.073 lb (33.11 g) |
|
Current Rating (Amps) |
0.070A |
|
Voltage Range |
14 ~ 27.6VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
EFB0424 |

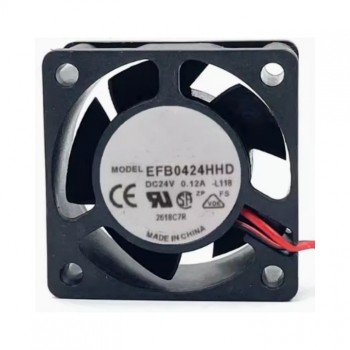

Actual image of the product
