Original AFC1512DG 15050 12V 1.80A 15CM High Air Volume Cooling Fan 150*150*50
Manufacturer
Manufacturer Product Number
AFC1512DG
Description
AFC1512DG 15050 12V 1.80A 15CM High Air Volume Cooling Fan 150*150*50
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| [ Fan Model ] : AFC1512DG [ Dimensions ] : 150×150×50mm [ Rated Voltage ] : DC12V [ Voltage Range ] : DC8.0-14.0V [ Input Power ] : 1.80A (Nominal Current) [ Rated Speed ] : 3800 r.p.m [ Temperature range ] : -10 -- 70 °C [ Estimated life ] : L10 estimated life at 25 °C 50,000 hours [ Bearing structure ] : Maintenance-free double ball bearings [ Rotation direction ] : The wind is discharged from the bracket and rotates counterclockwise in the face of the rotor [ Wiring method ] : +Red -black Signal: Blue [ Maximum air volume ] : 440.0 m3; /h [ Motor Protection ] : Overload protection, staggered protection and lock current protection [ Wind pressure ] : 123 Pa [ Noise index ] : 56.5 dB(A). [ Material ] : Glass fiber reinforced plastic, PBT shell, PA blade [ Function description ] : Electronically commutated out-rotor DC fan, complete electronically commutated parts |

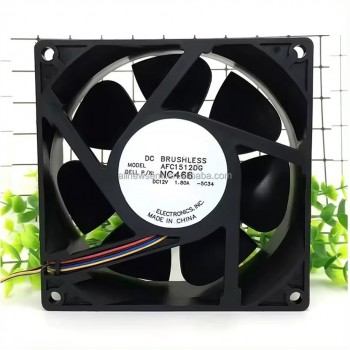

Actual image of the product
