Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original Centrifugal fan R3G225-RE07-03 EC fan air purification charging pile fan
Manufacturer
Manufacturer Product Number
R3G225-RE07-03
Description
R3G225-RE07-03 EC fan air purification charging pile fan
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
R3G225-RE07-03 |
|
Category |
Fans, Blowers, Thermal Management Fans AC Fans |
|
Manufacturer |
/ |
|
Series |
Green Tech RadiCal® R3G225RE |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
230VAC |
|
Size / Dimension |
Round - 225mm Dia |
|
Width |
99.00mm |
|
Air Flow |
765.2 CFM (21.43m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Motorized Impellers |
|
Features |
Electronic Commutation (EC) |
|
Noise |
70.0dB(A) |
|
Power (Watts) |
170W |
|
RPM |
2860 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
IP54 - Dust Protected, Water Resistant |
|
Operating Temperature |
-13 ~ 140°F (-25 ~ 60°C) |
|
Approval Agency |
UL |
|
Weight |
3.9 lbs (1.8 kg) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
200 ~ 240VAC |
|
Material - Frame |
Aluminum |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
- |
|
Base Product Number |
R3G225 |

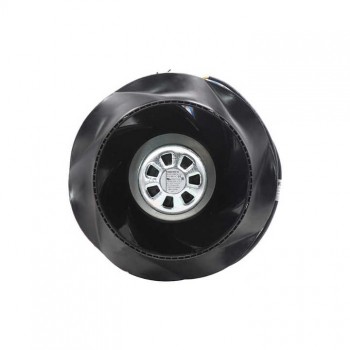

Actual image of the product
