Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original Axial fan 8214 J/2H4P 8038 24V 1.55A 37W 14000RPM 71dBA Inverter fan PWM fan
Manufacturer
Manufacturer Product Number
8214 J/2H4P
Description
8214 J/2H4P 8038 24V 1.55A 37W 14000RPM 71dBA Inverter fan PWM fan
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
8214 J/2H4P |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
8200J |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 80mm L x 80mm H |
|
Air Flow |
129.4 CFM (3.62m³/min) |
|
Static Pressure |
2.850 in H2O (709.9 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
PWM Control, Speed Sensor (Tach) |
|
Noise |
71.0dB(A) |
|
Power (Watts) |
37 W |
|
RPM |
14000 RPM |
|
Termination |
4 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
- |
|
Current Rating (Amps) |
0.015A |
|
Voltage Range |
12 ~ 27.6VDC |
|
Material - Frame |
- |
|
Material - Blade |
- |
|
Lifetime @ Temp. |
50000 Hrs @ 40°C |
|
Base Product Number |
8214J |

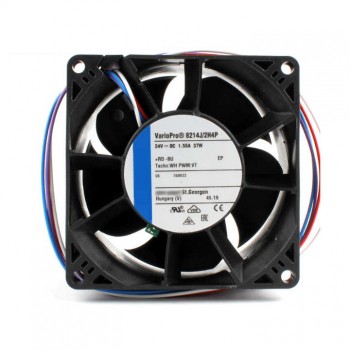

Actual image of the product
