Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original Axial fan 632/2HPU 6025 12V 1.6W IP68 6300RPM 0.13A Waterproof fan Computer fan
Manufacturer
Manufacturer Product Number
632/2HPU
Description
632/2HPU 6025 12V 1.6W IP68 6300RPM 0.13A Waterproof fan Computer fan
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
632/2HPU |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
630U |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
12VDC |
|
Size / Dimension |
Square - 60mm L x 60mm H |
|
Width |
25.40mm |
|
Air Flow |
25.9 CFM (0.725m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
PWM Control, Speed Sensor (Tach) |
|
Noise |
35.0dB(A) |
|
Power (Watts) |
1.5 W |
|
RPM |
6300 RPM |
|
Termination |
4 Wire Leads |
|
Ingress Protection |
IP68 - Dust Tight, Waterproof |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
UL |
|
Weight |
0.154 lb (69.85 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
11 ~ 13VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
- |
|
Base Product Number |
632 |

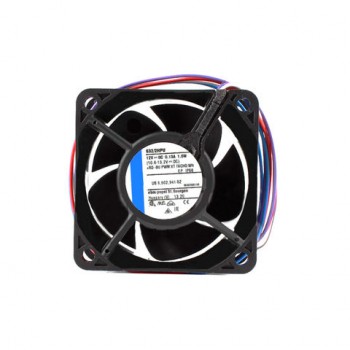

Actual image of the product
Other Products In The same category:
632/2HPU 6025 12V 1.6W IP68 6300RPM 0.13A Waterproof fan Computer fan
1000In stock:
Can ship immediately
