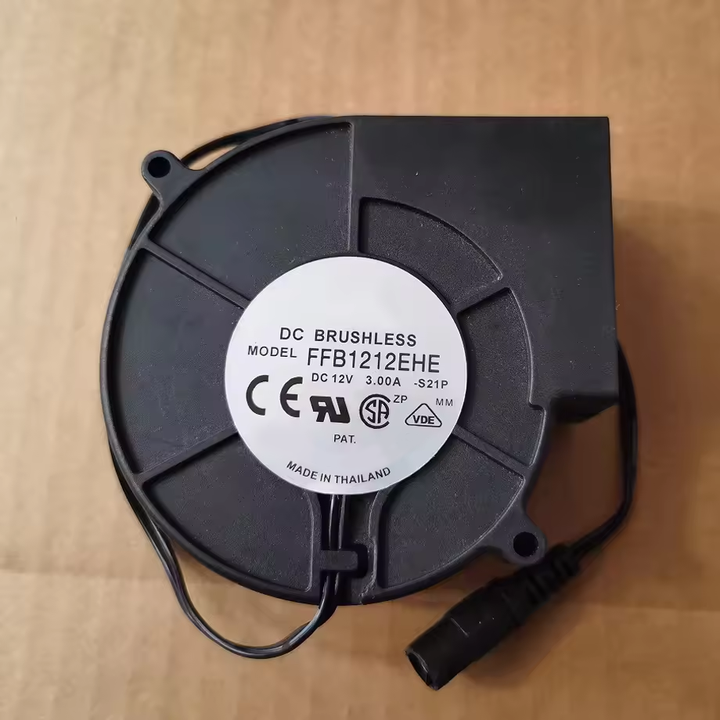

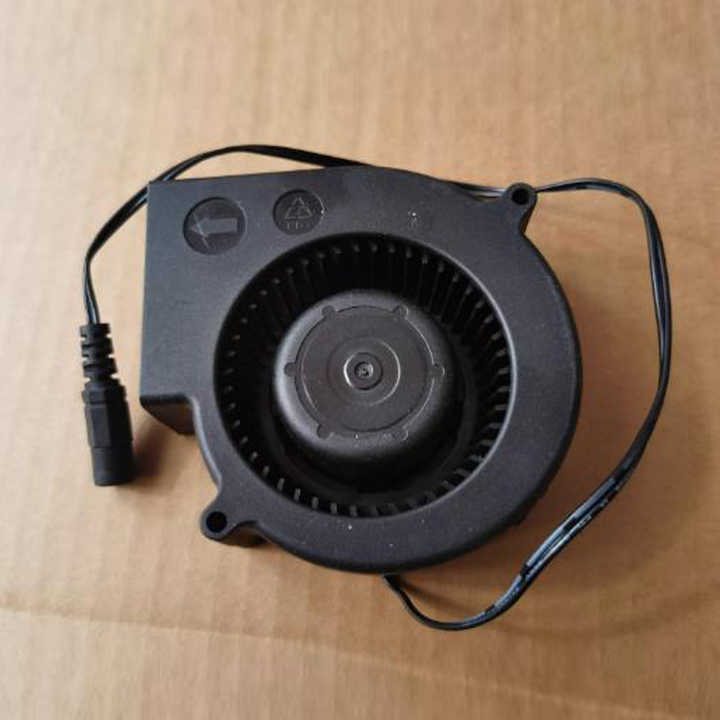

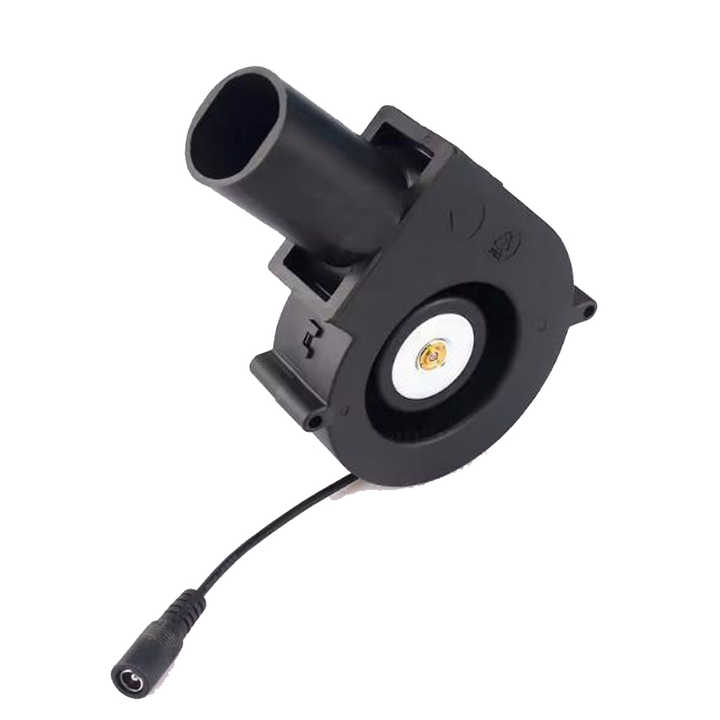

Factory price 9733 turbofan 12V 1.2A 2.94A firewood stove barbecue stove waste oil blower
Manufacturer
Manufacturer Product Number
FFB1212EHE
Description
FFB1212EHE FAN AXIAL 120X38MM 12VDC WIRE
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
FFB1212EHE |
|
category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
FFB |
|
Packaging |
Bulk |
|
Part Status |
Obsolete |
|
Voltage - Rated |
12VDC |
|
Size / Dimension |
Square - 120mm L x 120mm H |
|
Width |
38.00mm |
|
Air Flow |
190.0 CFM (5.32m³/min) |
|
Static Pressure |
0.700 in H2O (174.4 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection |
|
Noise |
59.0dB(A) |
|
Power (Watts) |
24 W |
|
RPM |
4000 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 140°F (-10 ~ 60°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.816 lb (370.13 g) |
|
Current Rating (Amps) |
2.00A |
|
Voltage Range |
7 ~ 13.2VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
FFB1212 |
Actual image of the product
Other Products In The same category:
FFB1212EHE FAN AXIAL 120X38MM 12VDC WIRE
1000In stock:
Can ship immediately
