Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original Axial flow fan 618JH 6032 48V 6.9W 0.14A 11700RPM 53dBA High speed inverter Computer fan
Manufacturer
Manufacturer Product Number
618JH
Description
618JH Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 41.2 CFM (1.15m³/min) 2 Wire Leads
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
618JH |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
600J |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
48VDC |
|
Size / Dimension |
Square - 60mm L x 60mm H |
|
Width |
32.00mm |
|
Air Flow |
41.2 CFM (1.15m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection |
|
Noise |
53.0dB(A) |
|
Power (Watts) |
7.7 W |
|
RPM |
11700 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
CE |
|
Weight |
0.222 lb (100.7 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
36 ~ 56VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
57500 Hrs @ 40°C |
|
Base Product Number |
618J |

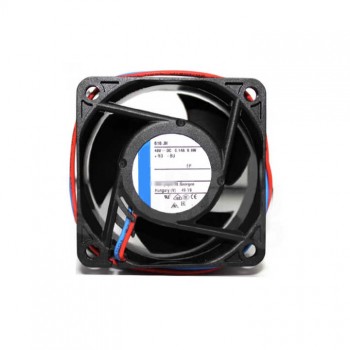

Actual image of the product
