Original electric axial flow cooling fan AFB0912VH 90*90*25mm 12V 0.6A 4000RPM 85.47CFM High volume dual ball fan
Manufacturer Product Number
AFB0912VH
Description
AFB0912VH 90*90*25mm 12V 0.6A 4000RPM 85.47CFM High volume dual ball fan
Package Condition
bag
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
AFB0912VH |
|
category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
AFB |
|
Packaging |
Tray |
|
Part Status |
Active |
|
Voltage - Rated |
12VDC |
|
Size / Dimension |
Square - 92mm L x 92mm H |
|
Width |
25.40mm |
|
Air Flow |
67.8 CFM (1.90m³/min) |
|
Static Pressure |
0.302 in H2O (75.2 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection |
|
Noise |
45.0dB(A) |
|
Power (Watts) |
4.8 W |
|
RPM |
3800 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 158°F (-10 ~ 70°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.218 lb (98.88 g) |
|
Current Rating (Amps) |
0.400A |
|
Voltage Range |
7 ~ 13.8VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
AFB0912 |

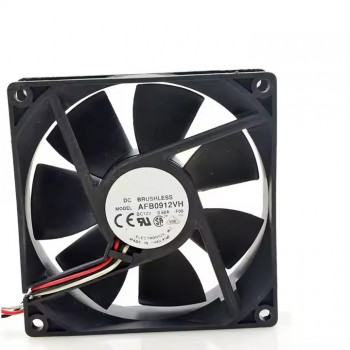

Actual image of the product
