BFB1012H 1.2A 12V turbo fan blower 9733 blower fan
Manufacturer
Manufacturer Product Number
BFB1012H
Description
BFB1012H Fan Blower 12VDC Rectangular/Rounded - 97.2mm L x 94.4mm H Ball 25.4 CFM (0.711m³/min) 2 Wire Leads
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
BFB1012H |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
BFB |
|
Packaging |
Bulk |
|
Part Status |
Obsolete |
|
Voltage - Rated |
12VDC |
|
Size / Dimension |
Rectangular/Rounded - 97.2mm L x 94.4mm H |
|
Width |
33.00mm |
|
Air Flow |
25.4 CFM (0.711m³/min) |
|
Static Pressure |
1.000 in H2O (249.1 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Blower |
|
Features |
Locked Rotor Protection |
|
Noise |
52.0dB(A) |
|
Power (Watts) |
9.6 W |
|
RPM |
3600 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 140°F (-10 ~ 60°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.353 lb (160.12 g) |
|
Current Rating (Amps) |
0.800A |
|
Voltage Range |
4 ~ 13.8VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
50000 Hrs @ 40°C |

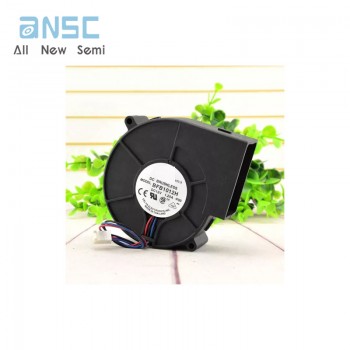

Actual image of the product
