Original Axial flow fan 4414FNH 12025 24V 12W 0.5A 5400RPM High speed large air volume inverter Computer fan
Manufacturer
Manufacturer Product Number
4414FNH
Description
12025 24V 12W 0.5A 5400RPM High speed large air volume inverter Computer fan
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
4414FNH |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
4400FN |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 119mm L x 119mm H |
|
Width |
25.40mm |
|
Air Flow |
132.4 CFM (3.71m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
55.0dB(A) |
|
Power (Watts) |
12 W |
|
RPM |
5400 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
- |
|
Weight |
0.529 lb (239.95 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
18 ~ 26.4VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
60000 Hrs @ 40°C |
|
Base Product Number |
4414 |

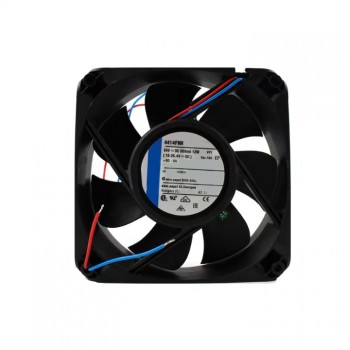

Actual image of the product
Other Products In The same category:
12025 24V 12W 0.5A 5400RPM High speed large air volume inverter Computer fan
1000In stock:
Can ship immediately
