Original Cooling fan HA40101V4-000C-999 DC12V 0.8W 4CM Maglev Silent Fan
Manufacturer
Manufacturer Product Number
HA40101V4-000C-999
Description
Cooling fan HA40101V4-000C-999 DC12V 0.8W 4CM Maglev Silent Fan
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| FEATURES |
| Brand and model: SUNON HA series DC cooling fan, model HA40101V4-1000C-A99, size 40×40×10mm, weight 15.4g |
| Motor & Bearing: Adopts single-phase 4-pole brushless DC motor, with Vapo magnetic levitation bearing system, stable operation and long life (60000 hours @ 40°C 65% humidity) |
| 3Electrical parameters: rated voltage 12VDC, rated current 31mA (max. 38mA), rated power 0.38W (max. 0.46W), operating voltage range 4.5~13.8VDC |
| 4Performance Indicators: Air Volume 5.4CFM, Static Pressure 0.09Inch-H2O, Noise 15.7dB(A), Counterclockwise Rotation (from the front of the fan blade) |
| 5Material & Safety: The frame and fan blades are made of UL94V-0 grade PBT material, which has passed UL, CUR, TUV, CE safety certification, meets the requirements of RoHS directives, and has a built-in automatic restart function (protects the motor when locked) |
| 6Mechanical design: 4 mounting holes (diameter 4.3mm), suitable for fixed installation of a variety of equipment |
| Use Scenario APPLICATIONS |
| 1Electronic equipment heat dissipation: suitable for PC accessories such as computer cases, CPU coolers, power supplies, graphics cards, etc |
| 2Industrial control and communication equipment: It can be used in industrial control chassis, PLC control cabinets, switches, routers, base station equipment, etc |
| 3Medical and lighting equipment: Medical instruments (such as analyzers, monitors), LED lamps, projectors, and other equipment that require heat dissipation |
| 4Other scenarios: Security monitoring equipment, on-board electronic equipment, small home appliances, and other scenarios that require low noise and efficient heat dissipation |

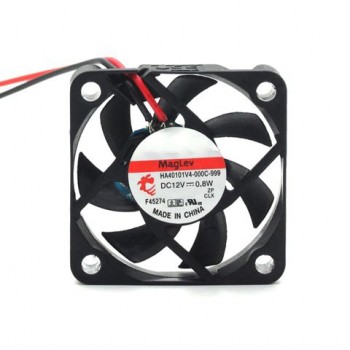

Actual image of the product
