Original AFB1212VHE 0.90A 120*120*38 12038 12CM DC 12V Cooling Fan
Manufacturer
Manufacturer Product Number
AFB1212VHE
Description
AFB1212VHE FAN AXIAL 120X38MM 12VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
AFB1212VHE |
|
category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
AFB |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
12VDC |
|
Size / Dimension |
Square - 120mm L x 120mm H |
|
Width |
38.00mm |
|
Air Flow |
130.0 CFM (3.64m³/min) |
|
Static Pressure |
0.420 in H2O (104.6 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection |
|
Noise |
48.0dB(A) |
|
Power (Watts) |
7.2 W |
|
RPM |
3200 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 140°F (-10 ~ 60°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.565 lb (256.28 g) |
|
Current Rating (Amps) |
0.600A |
|
Voltage Range |
4 ~ 13.2VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
AFB1212 |

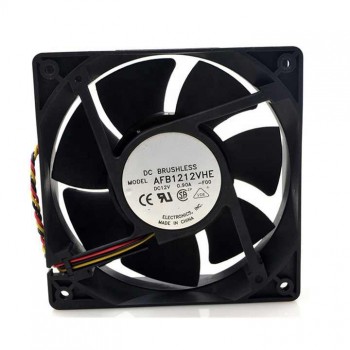

Actual image of the product
