Original AFB1212L 12cm 12025 DC12V 0.21A Power Chassis Double Ball Super Silent Cooling Fan
Manufacturer
Manufacturer Product Number
AFB1212L
Description
AFB1212L FAN AXIAL 120X25.4MM 12VDC WIRE
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
| PART# | AFB1212L |
|
category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
AFB |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
12VDC |
|
Size / Dimension |
Square - 120mm L x 120mm H |
|
Width |
25.40mm |
|
Air Flow |
62.9 CFM (1.76m³/min) |
|
Static Pressure |
0.154 in H2O (38.4 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Protection |
|
Noise |
32.5dB(A) |
|
Power (Watts) |
1.68 W |
|
RPM |
1900 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
14 ~ 140°F (-10 ~ 60°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.437 lb (198.00 g) |
|
Current Rating (Amps) |
0.140A |
|
Voltage Range |
7 ~ 13.8VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
AFB1212 |

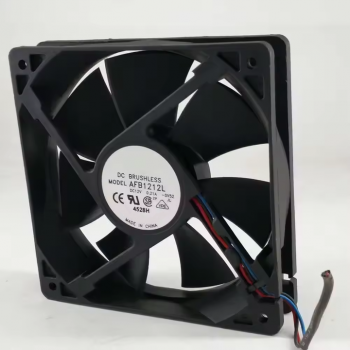

Actual image of the product
