Original electric axial flow cooling fan FFB1224EHE 4V0.75A High volume DC fan
Manufacturer
Manufacturer Product Number
FFB1224EHE
Description
FFB1224EHE FAN AXIAL 120X38MM 24VDC WIRE
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
FFB1224EHE |
|
category |
Fans, fans, thermal management Fan Brushless DC Fan (BLDC) |
|
manufacturer |
/ |
|
series |
FFB |
|
Packaging |
box |
|
Part status |
On sale |
|
Voltage - Rating |
24VDC |
|
Size / Dimensions |
Square - 120mm long x 120mm high |
|
Width |
38.00mm |
|
Airflow |
190.0 CFM (5.32 m³/min) |
|
Static pressure |
0.700" water column (174.4 Pa) |
|
Bearing type |
Roll-on |
|
Fan type |
Tube shaft type |
|
Characteristics |
Rotor locking protection |
|
Noise |
59.0dB（A） |
|
Power (W) |
24 W |
|
RPM |
4000 RPM |
|
Termination |
2 leads |
|
Intrusion protection |
- |
|
Operating temperature |
14~122°F(-10~50°C) |
|
Certification body |
CE,CSA,UL,VDE |
|
weight |
0.816 lbs (370.13 g) |
|
Rated current (amps) |
1.00A |
|
Voltage range |
14 ~ 26.4VDC |
|
Material - frame |
plastic |
|
Material – inserts |
plastic |
|
Service life at different temperatures |
70000 hours @ 40°C |
|
Base product number |
FFB1224 |

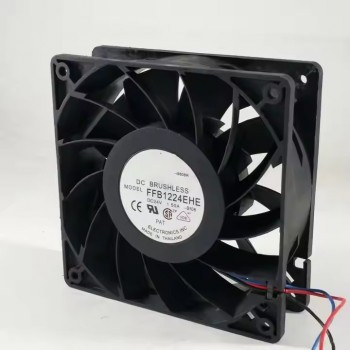

Actual image of the product
