Hot sale Original 19020174A Fan Tubeaxial 115VAC Square - 176mm L x 176mm H Ball 330.0 CFM (9.24m³/min) 2 Terminals
Manufacturer Product Number
19020174A
Description
Original 19020174A Fan Tubeaxial 115VAC Square - 176mm L x 176mm H Ball 330.0 CFM (9.24m³/min) 2 Terminals
Package Condition
Box
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type | Description |
| ANSC PART# | ANSC - 19020174A |
| Category | Fans, Blowers, Thermal Management |
| Fans | |
| AC Fans | |
| Manufacturer | - |
| Series | Tarzan AC |
| Packaging | Box |
| Part Status | Active |
| Voltage - Rated | 115VAC |
| Size / Dimension | Square - 176mm L x 176mm H |
| Width | 112.0mm |
| Air Flow | 330.0 CFM (9.24m³/min) |
| Static Pressure | 0.871 in H2O (216.9 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Noise | 65.4dB(A) |
| Power (Watts) | 59.0W |
| RPM | 3350 RPM |
| Termination | 2 Terminals |
| Ingress Protection | - |
| Operating Temperature | - |
| Approval Agency | CE, cUL, UL |
| Weight | 5 lbs (2.3 kg) |
| Current Rating (Amps) | 0.490A |
| Voltage Range | - |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
| Lifetime @ Temp. | 25000 Hrs @ 40°C |

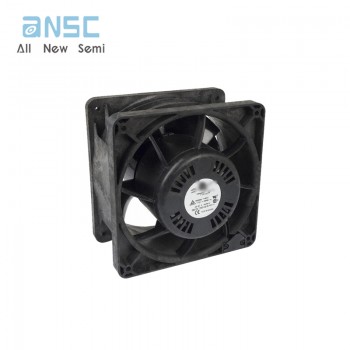

Actual image of the product
