Original Axial fan 612NH 6CM 6025 12V 166MA 2.0W
Manufacturer
Manufacturer Product Number
612NH
Description
612NH FAN AXIAL 60X25.4MM 12VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
612NH |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
600N |
|
Packaging |
Box |
|
Part Status |
Active |
|
Voltage - Rated |
12VDC |
|
Size / Dimension |
Square - 60mm L x 60mm H |
|
Width |
25.40mm |
|
Air Flow |
27.1 CFM (0.759m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
37.0dB(A) |
|
Power (Watts) |
2 W |
|
RPM |
5600 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
CE, CSA, UL, VDE |
|
Weight |
0.187 lb (84.82 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
8 ~ 15VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
|
Base Product Number |
612N |

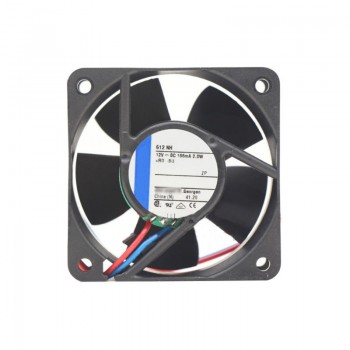

Actual image of the product
