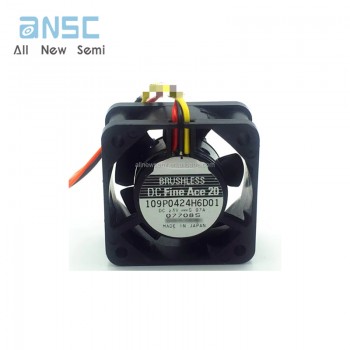

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
109P0424H6D01 Fan Tubeaxial 24VDC Square - 40mm L x 40mm H Ball 8.2 CFM (0.230m³/min) 3 Wire Leads
Manufacturer
Manufacturer Product Number
109P0424H6D01
Description
109P0424H6D01 FAN AXIAL 40X20MM 24VDC WIRE
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
San Ace 40
sensor Refer to Page 261
・Material ……………………Frame: Plastics (Flammability: UL94V-0),
Impeller:Plastics (Flammability: UL94V-1)
・Life Expectancy …………Varies for each model （L10:Survival rate:90% at 60℃,
rated voltage, and continuously run in a free air state）
・Lead Wire …………………red black or blue Sensor yellow
・Storage Temperature …－30℃to ＋70℃（Non-condensing）
Product Description
|
Type |
Description |
|---|---|
|
PART# |
109P0424H6D01 |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
San Ace 40 |
|
Packaging |
Box |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 40mm L x 40mm H |
|
Width |
20.00mm |
|
Air Flow |
8.2 CFM (0.230m³/min) |
|
Static Pressure |
0.280 in H2O (69.7 Pa) |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
Locked Rotor Sensor |
|
Noise |
35.0dB(A) |
|
Power (Watts) |
1.68 W |
|
RPM |
8300 RPM |
|
Termination |
3 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
CSA, TUV, UL |
|
Weight |
0.101 lb (45.81 g) |
|
Current Rating (Amps) |
0.070A |
|
Voltage Range |
12 ~ 27.6VDC |
|
Material - Frame |
Plastic |
|
Material - Blade |
Plastic |
|
Lifetime @ Temp. |
60000 Hrs @ 60°C |
|
Base Product Number |
109P0424 |
Actual image of the product
