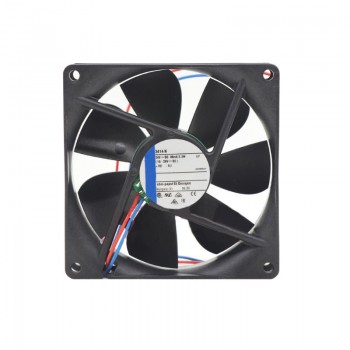

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Original Axial flow fan 3414N 24V 2.3W 9CM Cooling fan
Manufacturer
Manufacturer Product Number
3414N
Description
3414N Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 49.4 CFM (1.38m³/min) 2 Wire Leads
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
|
Type |
Description |
|---|---|
|
PART# |
3414N |
|
Category |
Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
|
Mfr |
/ |
|
Series |
3400N |
|
Packaging |
Bulk |
|
Part Status |
Active |
|
Voltage - Rated |
24VDC |
|
Size / Dimension |
Square - 92mm L x 92mm H |
|
Width |
25.40mm |
|
Air Flow |
49.4 CFM (1.38m³/min) |
|
Static Pressure |
- |
|
Bearing Type |
Ball |
|
Fan Type |
Tubeaxial |
|
Features |
- |
|
Noise |
32.0dB(A) |
|
Power (Watts) |
2.3 W |
|
RPM |
2700 RPM |
|
Termination |
2 Wire Leads |
|
Ingress Protection |
- |
|
Operating Temperature |
-4 ~ 158°F (-20 ~ 70°C) |
|
Approval Agency |
CSA, UL, VDE |
|
Weight |
0.22 lb (99.79 g) |
|
Current Rating (Amps) |
- |
|
Voltage Range |
18 ~ 28VDC |
|
Material - Frame |
Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
|
Material - Blade |
Polyamide (PA), Nylon, Fiberglass Reinforced |
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
Actual image of the product
